Installation

Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

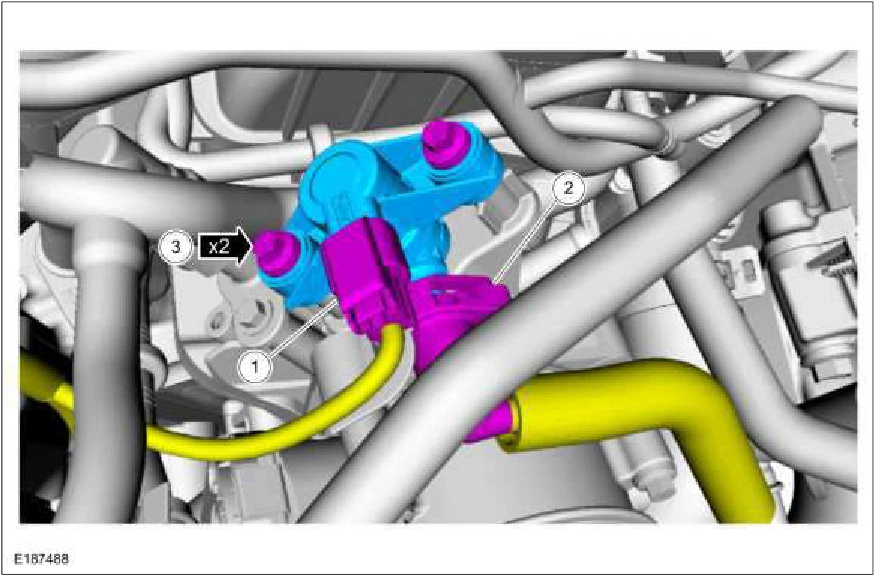

3. Remove the bolts and the EVAP canister purge valve. Torque : 89 lb.in (10 Nm)

303-13C Evaporative Emissions - 5.0L — original illustration 1, reference 721Original colors & callouts · Select to enlarge

1. To install, reverse the removal procedure.

Source reference 721
