303-13C Evaporative Emissions - 5.0L — 2016 workshop reference 723

303-13C Evaporative Emissions - 5.0L — original illustration 1, reference 723Original colors & callouts · Select to enlarge

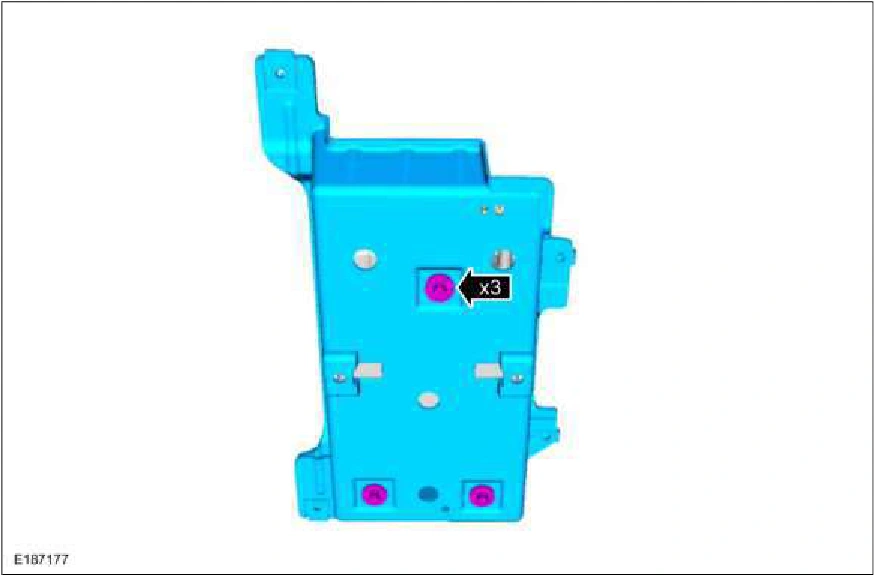

4. If necessary, remove the EVAP canister solenoid.

303-13C Evaporative Emissions - 5.0L — original illustration 2, reference 723Original colors & callouts · Select to enlarge

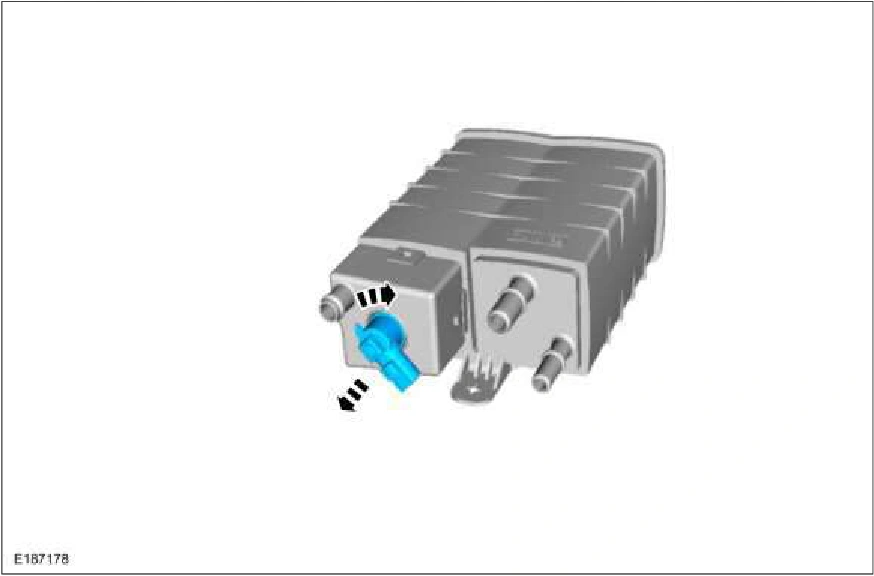

5. Release the tabs and remove EVAP canister ventilation filter.
