Evaporative Emission Canister Ventilation Filter

303-13C Evaporative Emissions - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

01/8/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the EVAP canister. Refer to: Evaporative Emission Canister (303-13C Evaporative Emissions - 5.0L 32V Ti-VCT/5.0L Ti-VCT

V8 (308kW/418PS), Removal and Installation).

2. Disconnect the EVAP canister solenoid electrical connector.

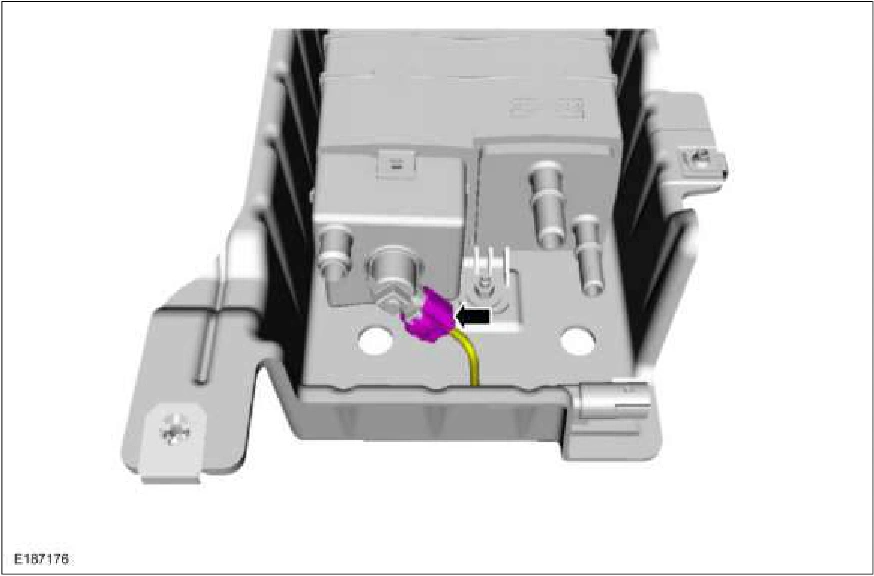

303-13C Evaporative Emissions - 5.0L — original illustration 1, reference 722Original colors & callouts · Select to enlarge

3. Remove the bolts and EVAP canister shield. Torque : 62 lb.in (7 Nm)

Source reference 722
