LH (left-hand) Camshaft Position (CMP) Sensors

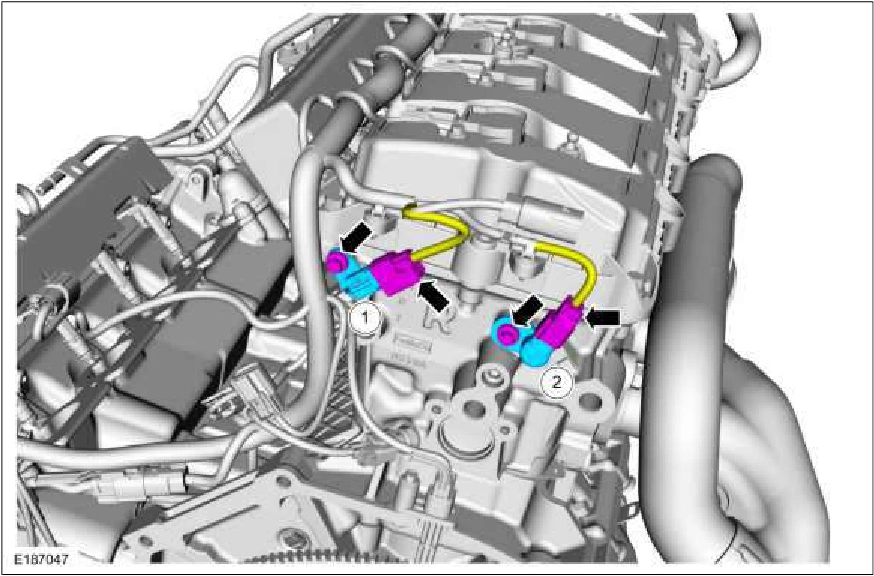

303-14C Electronic Engine Controls - 5.0L — original illustration 1, reference 756Original colors & callouts · Select to enlarge

Step 3

1. Disconnect the intake CMP sensor electrical connector and remove the retainer and the CMP sensor. Material : Motorcraft® SAE 5W-20 Full Synthetic Motor Oil (U.S.) / XO-5W20-QFS (U.S.) (WSS-M2C945-A) Torque : 89 lb.in (10 Nm)

2. Position aside the radio ignition interference capacitor.

3. Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor. Material : Motorcraft® SAE 5W-20 Full Synthetic Motor Oil (U.S.) / XO-5W20-QFS (U.S.) (WSS-M2C945-A) Torque : 89 lb.in (10 Nm)

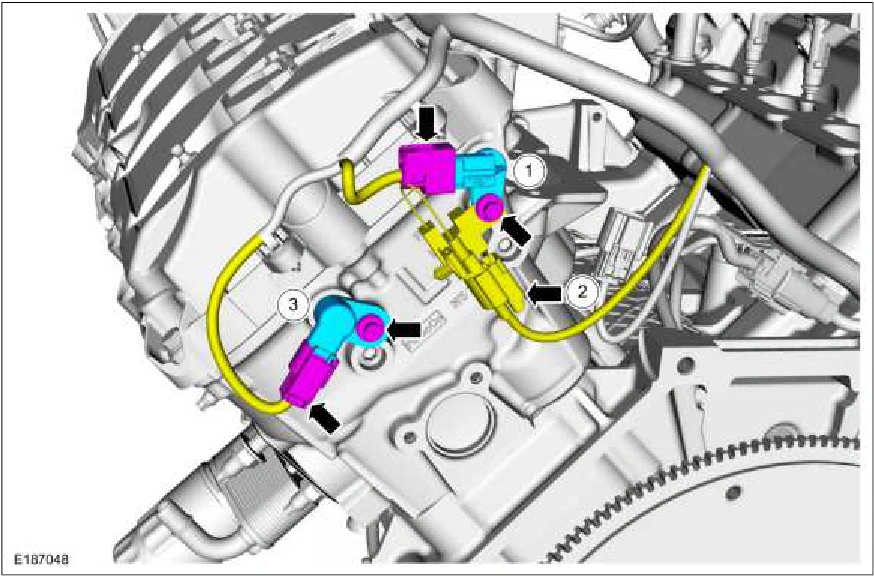

303-14C Electronic Engine Controls - 5.0L — original illustration 2, reference 756Original colors & callouts · Select to enlarge
