Left hand (LH) Catalyst monitor sensor

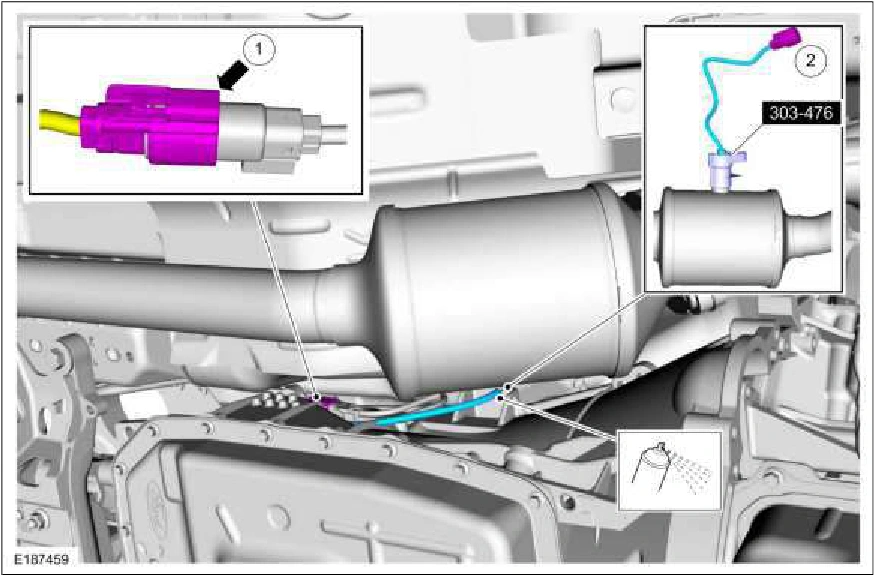

303-14C Electronic Engine Controls - 5.0L — original illustration 1, reference 759Original colors & callouts · Select to enlarge

Step 3

1. Disconnect the catalyst monitor sensor electrical connector.

2. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor. Material : Penetrating and Lock Lubricant / XL-1

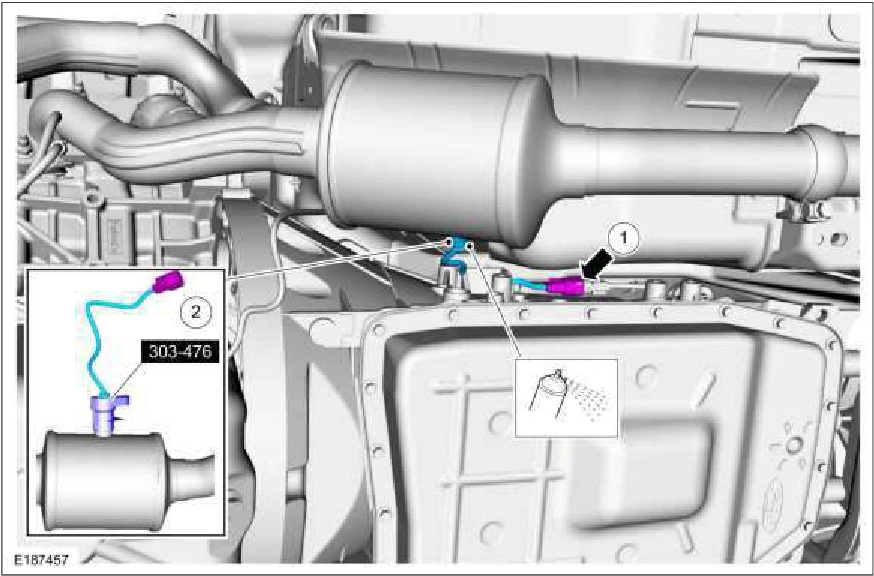

303-14C Electronic Engine Controls - 5.0L — original illustration 2, reference 759Original colors & callouts · Select to enlarge

Installation

Left hand (LH) Catalyst monitor sensor

Step 1

1. Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter Formula in the Apex.

Source reference 759
