Right hand (RH) Catalyst monitor sensor

Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor. Material : High Temperature Nickel Anti-Seize Lubricant / XL-2 Torque : 35 lb.ft (48 Nm)

2. Connect the catalyst monitor sensor electrical connector.

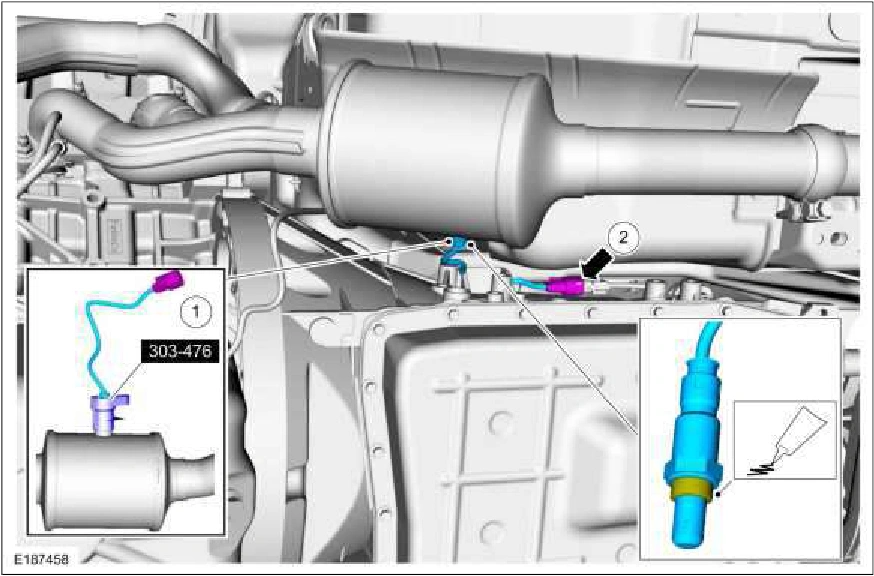

303-14C Electronic Engine Controls - 5.0L — original illustration 1, reference 760Original colors & callouts · Select to enlarge

Step 2

1. Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter Formula in the Apex. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor. Material : High Temperature Nickel Anti-Seize Lubricant / XL-2 Torque : 35 lb.ft (48 Nm)

2. Connect the catalyst monitor sensor electrical connector.

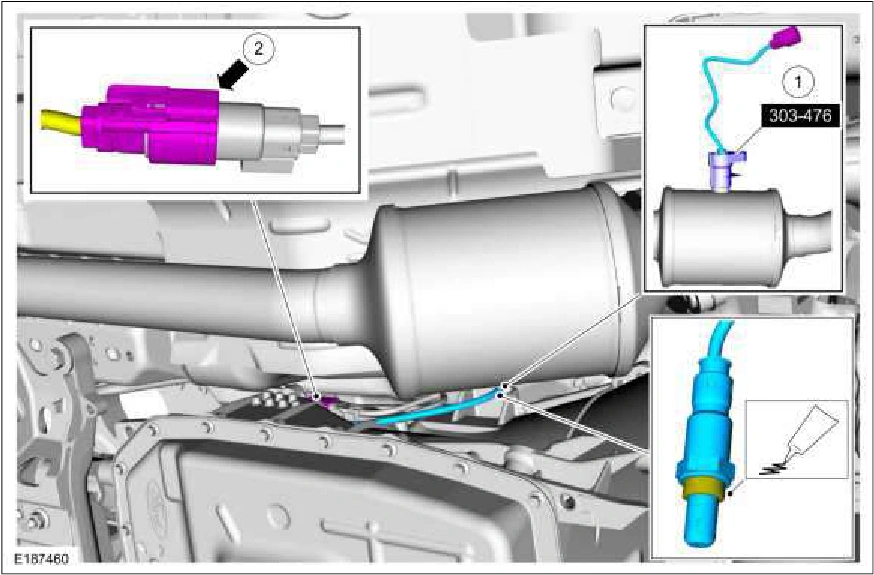

303-14C Electronic Engine Controls - 5.0L — original illustration 2, reference 760Original colors & callouts · Select to enlarge

Source reference 760
