Clutch Pedal Position (CPP) Switch

303-14C Electronic Engine Controls - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

01/8/2015

Base Part Number: 14489

Removal

NOTE: Removal steps in this procedure may contain installation details.

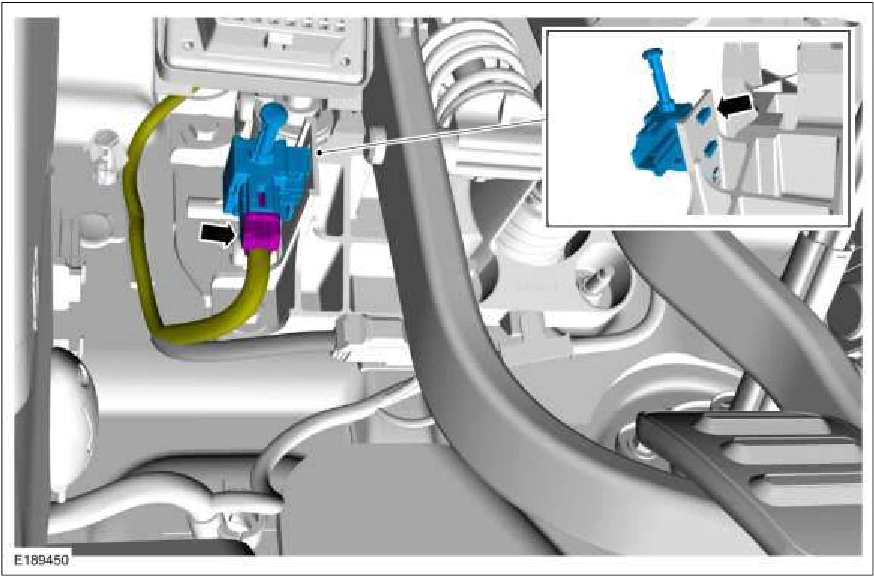

1. Disconnect the electrical connector and remove CPP switch from the bracket.

303-14C Electronic Engine Controls - 5.0L — original illustration 1, reference 762Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 762
