Cylinder Head Temperature (CHT) Sensor

303-14C Electronic Engine Controls - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

01/12/2015

Base Part Number: 6G004

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the intake manifold. Refer to: Intake Manifold (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. NOTE: Do not reuse the CHT sensor, install a new sensor.

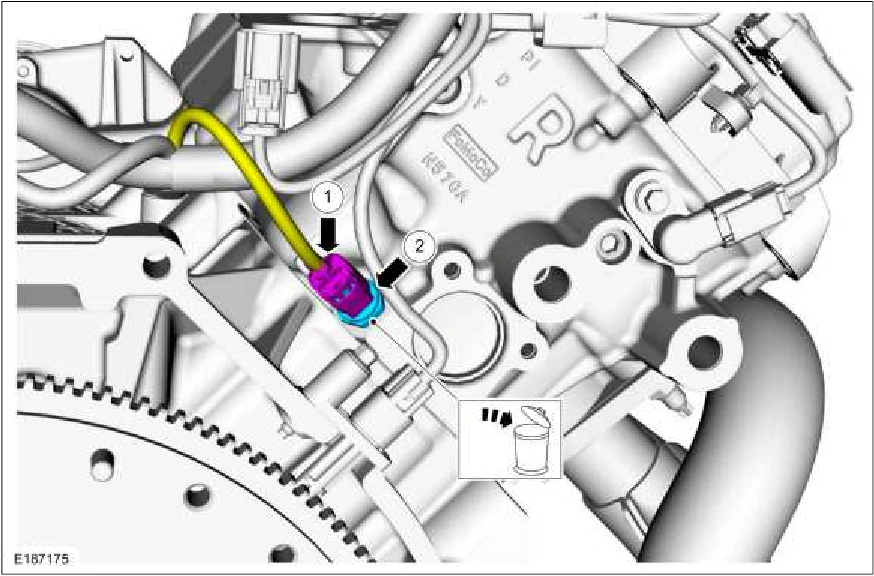

1. Disconnect the CHT sensor electrical connector.

2. Remove and discard the CHT sensor. Torque : 97 lb.in (11 Nm)

303-14C Electronic Engine Controls - 5.0L — original illustration 1, reference 764Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 764
