501-02 Front End Body Panels 2016 Mustang

Removal and Installation Procedure revision date: 10/27/2015

Active Grille Shutter

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

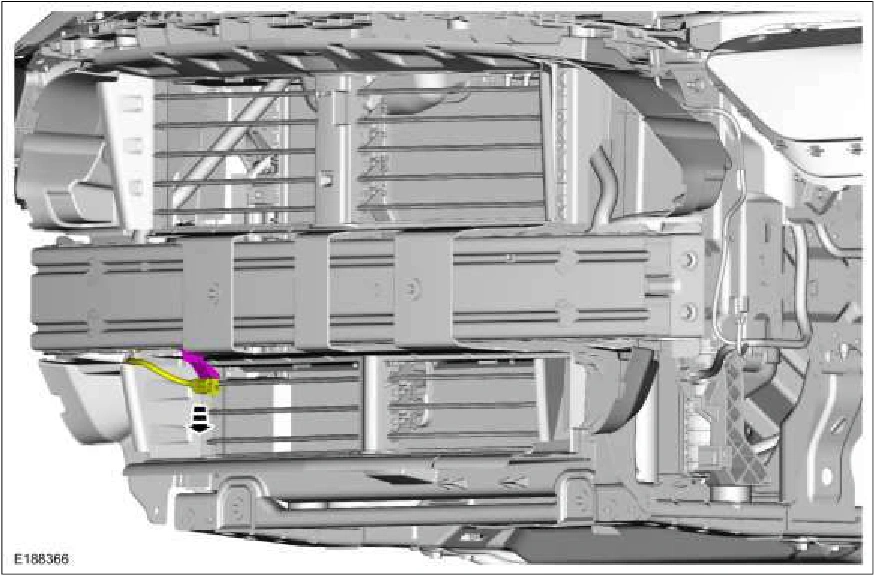

2. Detach the ambient air temperature sensor.

Active Grille Shutter — original illustration 1, reference 796Original colors & callouts · Select to enlarge

3. Remove the retainers and bolts and position the active grille shutter forward. Torque : 71 lb.in (8 Nm)
