Active Grille Shutter — 2016 workshop reference 797

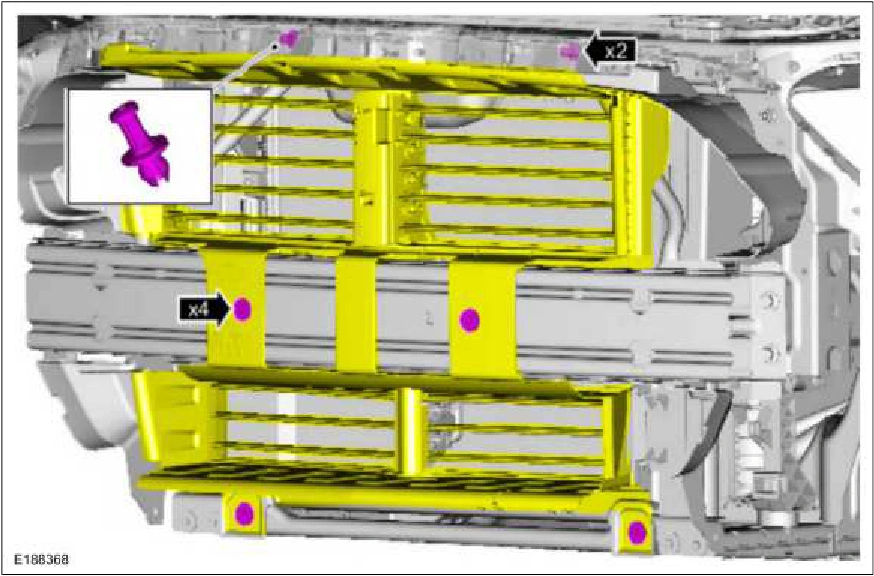

Active Grille Shutter — original illustration 1, reference 797Original colors & callouts · Select to enlarge

4. NOTE: Radiator and condenser removed for clarity.

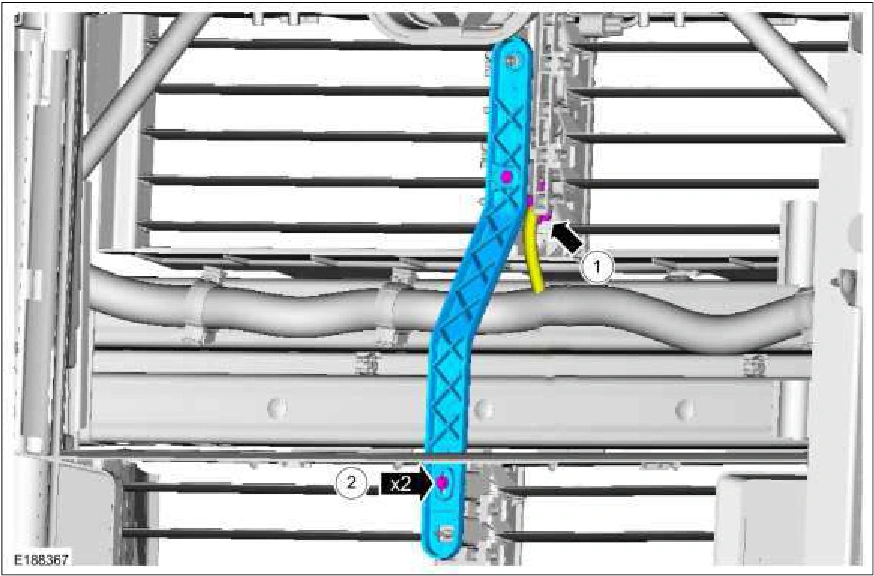

1. Disconnect the active grille shutter actuator electrical connector.

2. Remove the retainers and the bridge link. Torque : 27 lb.in (3 Nm)

Active Grille Shutter — original illustration 2, reference 797Original colors & callouts · Select to enlarge

5. Remove the active grille shutter.

Source reference 797
