501-02 Front End Body Panels 2016 Mustang

Removal and Installation Procedure revision date: 03/13/2015

Active Grille Shutter Actuator

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the active grille shutter assembly. Refer to: Active Grille Shutter (501-02 Front End Body Panels, Removal and Installation).

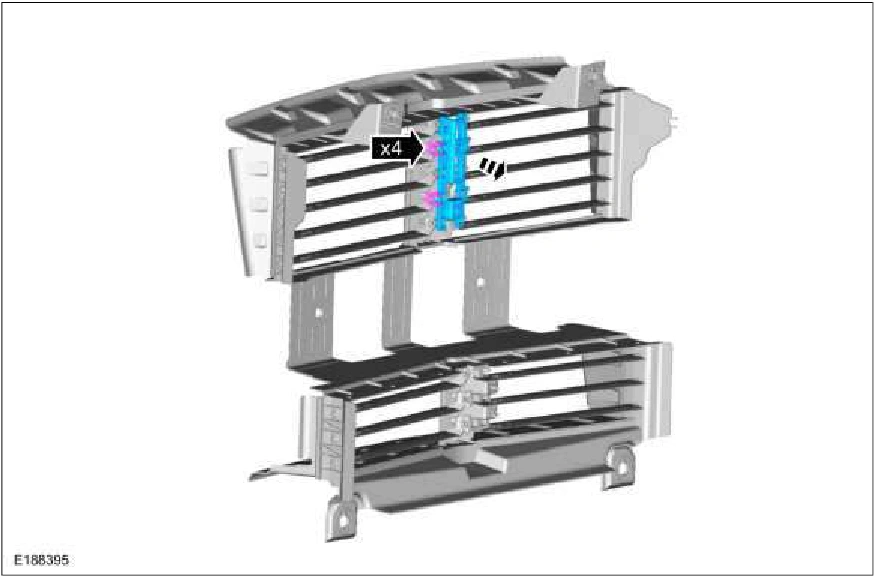

2. Remove the upper linkage.

Active Grille Shutter Actuator — original illustration 1, reference 799Original colors & callouts · Select to enlarge

3. Remove the retainer. Using a screwdriver, push up on the clip and remove the active grille shutter actuator.
