Cowl Panel Grille — 2016 workshop reference 802

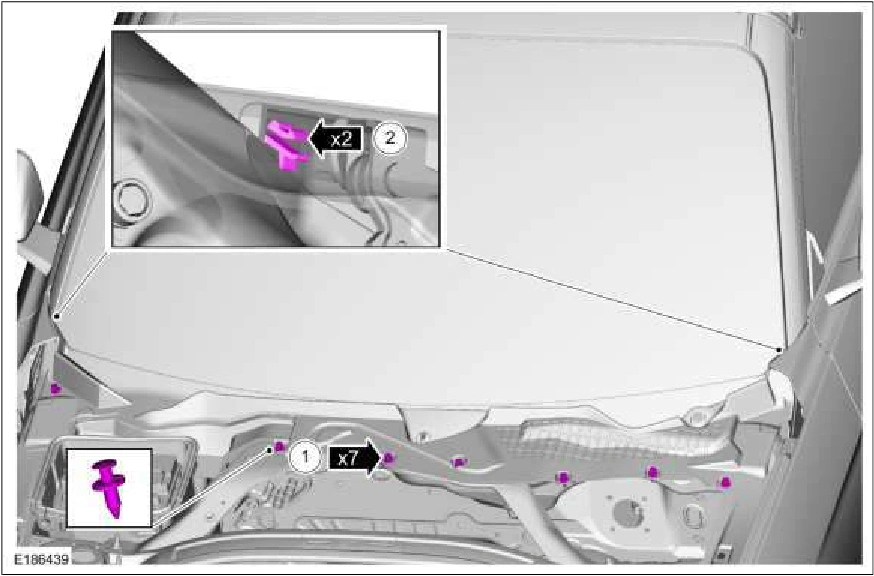

Cowl Panel Grille — original illustration 1, reference 802Original colors & callouts · Select to enlarge

Step 4

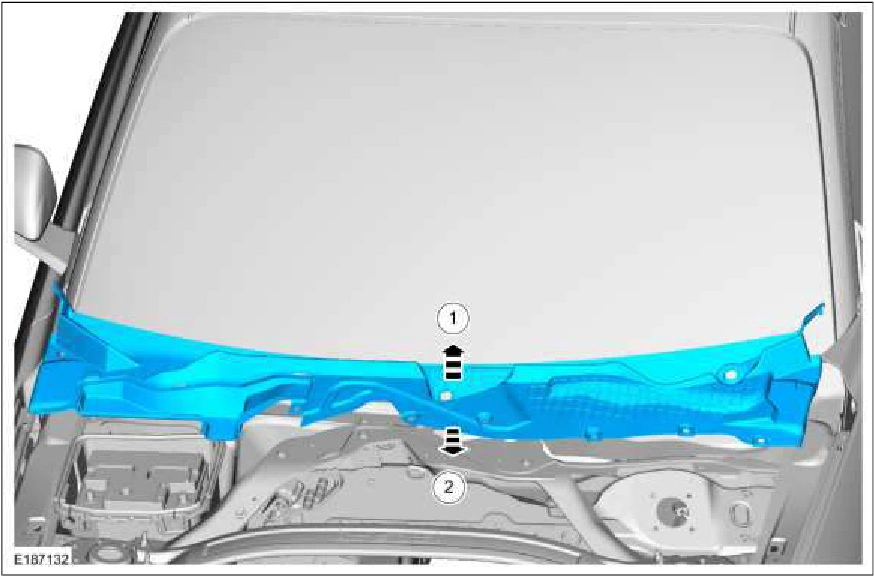

1. Lift the cowl panel grille up.

2. Pull the cowl panel grille out and remove.

Cowl Panel Grille — original illustration 2, reference 802Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 802

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
