Fender

501-02 Front End Body Panels 2016 Mustang

Removal and Installation Procedure revision date: 03/13/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

1. Remove the fender splash shield. Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

2. Remove the rocker panel moulding. Refer to: Rocker Panel Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).

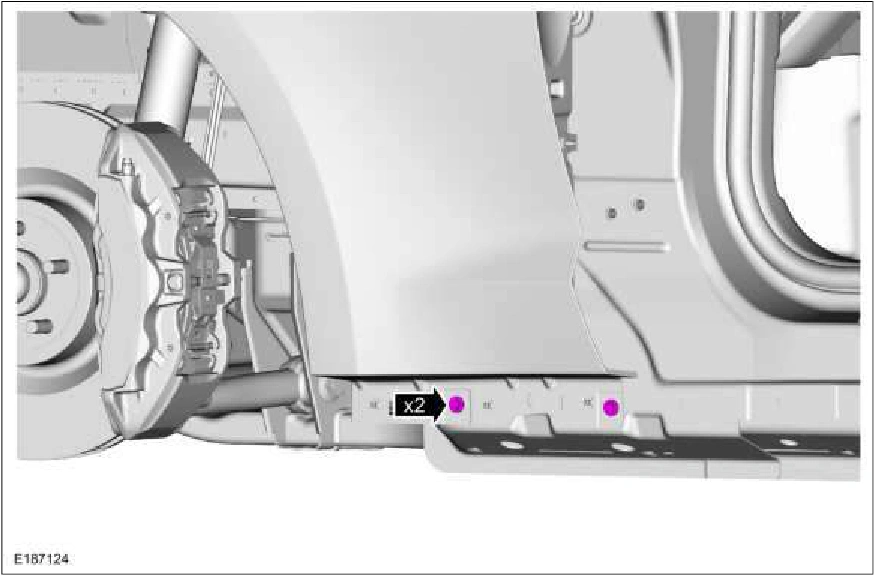

3. Remove the bolts. Torque : 106 lb.in (12 Nm)

Fender — original illustration 1, reference 805Original colors & callouts · Select to enlarge

4. Remove the bolt and separate the front bumper cover from the fender bracket. Torque : 18 lb.in (2 Nm)

Source reference 805
