Fender — 2016 workshop reference 806

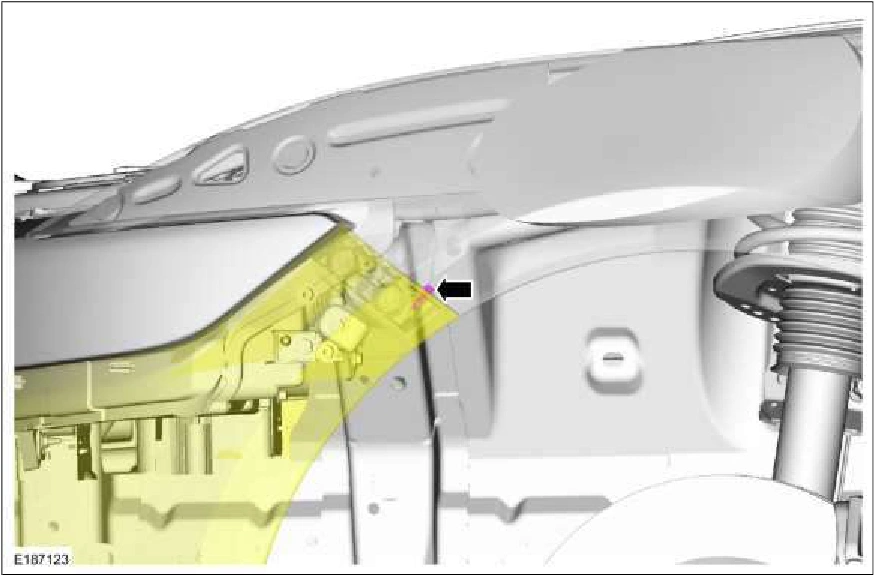

Fender — original illustration 1, reference 806Original colors & callouts · Select to enlarge

Step 5

1. Remove the headlamp assembly bolt. Torque : 27 lb.in (3 Nm)

2. Remove the fender bolt. Torque : 106 lb.in (12 Nm)

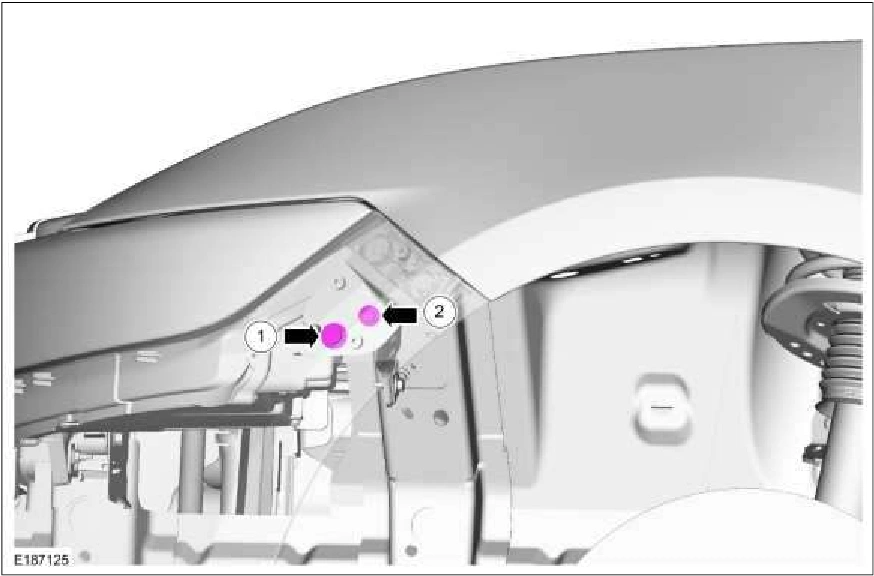

Fender — original illustration 2, reference 806Original colors & callouts · Select to enlarge

6. Remove the cowl panel grille to fender clip.

Source reference 806
