Fender — 2016 workshop reference 807

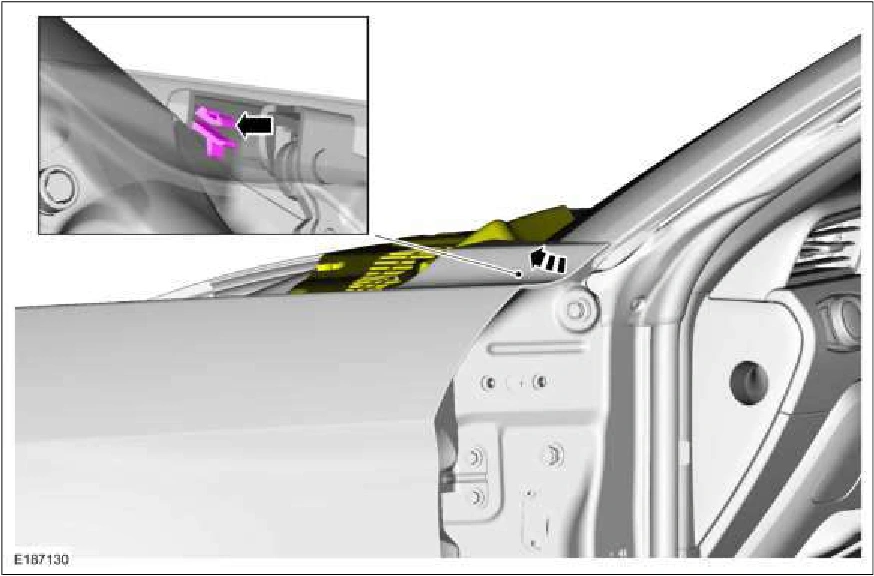

Fender — original illustration 1, reference 807Original colors & callouts · Select to enlarge

7. Remove the bolt. Torque : 80 lb.in (9 Nm)

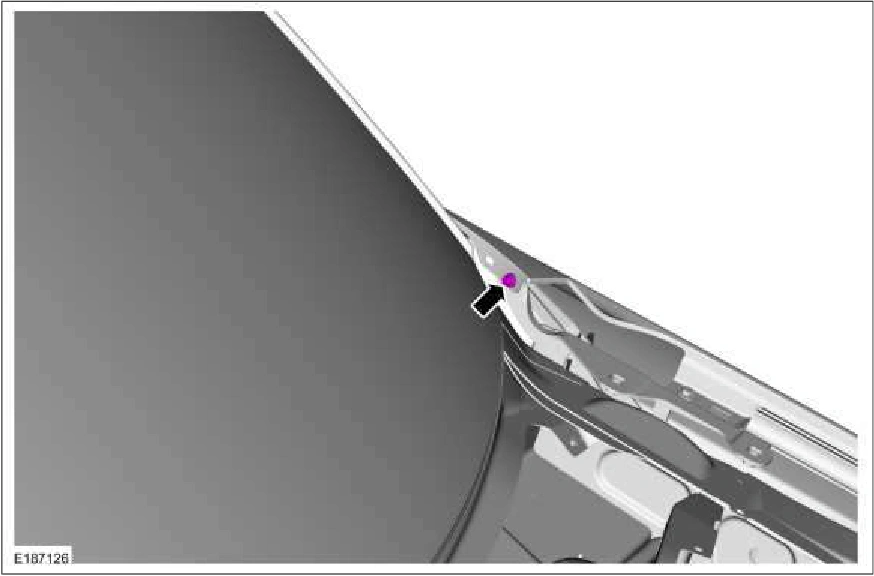

Fender — original illustration 2, reference 807Original colors & callouts · Select to enlarge

Step 8

1. Position aside the door weatherstrip.

2. Remove the bolt. Torque : 80 lb.in (9 Nm)

Source reference 807
