501-02 Front End Body Panels 2016 Mustang

Removal and Installation Procedure revision date: 03/13/2015

Fender Splash Shield

Base Part Number: 16054

Removal

NOTE: LH side shown, RH side similar.

1. Remove the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

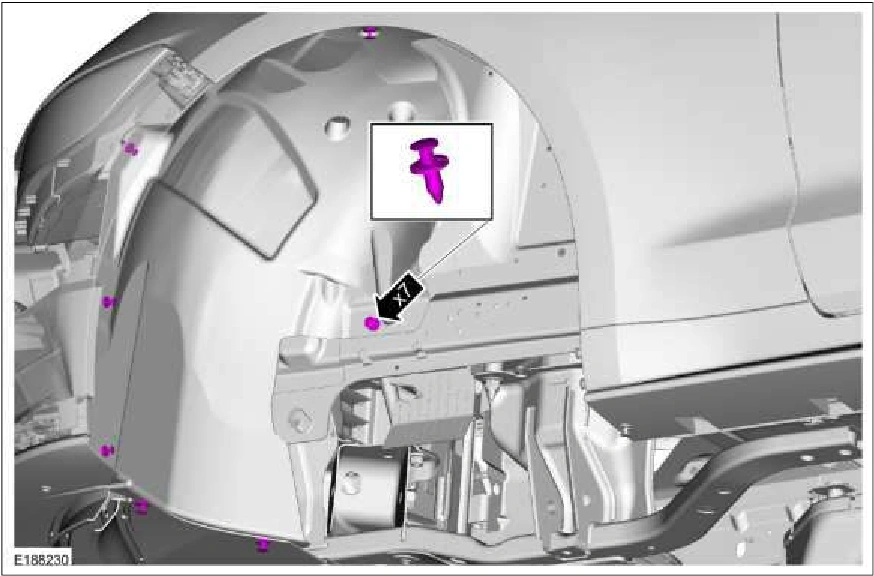

2. Remove the retainers.

Fender Splash Shield — original illustration 1, reference 803Original colors & callouts · Select to enlarge

3. Remove the retainers.
