Cowl Panel Grille

501-02 Front End Body Panels 2016 Mustang

Removal and Installation Procedure revision date: 03/13/2015

Removal

NOTE: LHD shown, RHD similar.

1. Remove the wiper pivot arms. Refer to: Windshield Wiper Pivot Arm - LHD (501-16 Wipers and Washers, Removal and Installation).

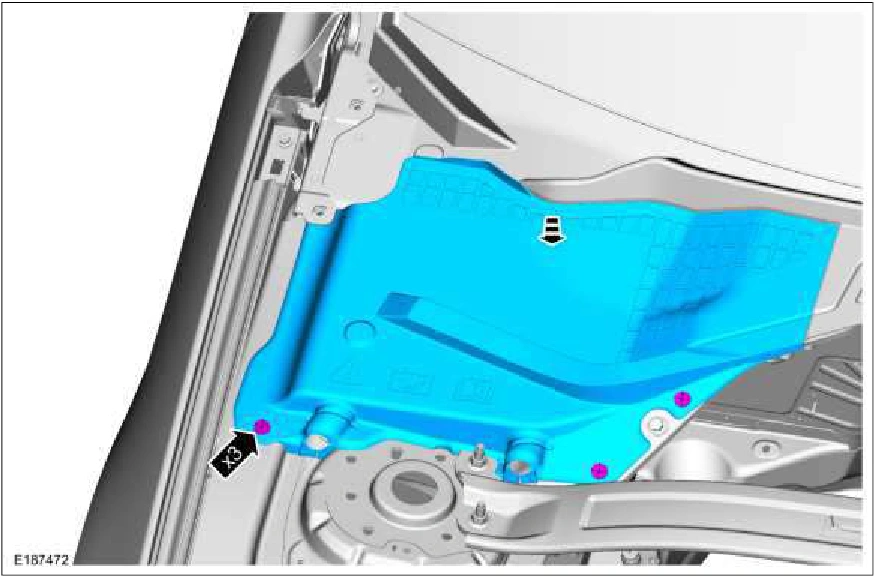

2. Remove the retainers and the battery cover.

Cowl Panel Grille — original illustration 1, reference 801Original colors & callouts · Select to enlarge

3. Remove the retainers and the clips.

1. Remove the retainers.

2. Depress and remove the clips.

Source reference 801
