Fuel Filler Door

501-03 Body Closures 2016 Mustang

Removal and Installation Procedure revision date: 02/20/2015

Removal

1. Open the fuel filler door.

Fuel Filler Door — original illustration 1, reference 838Original colors & callouts · Select to enlarge

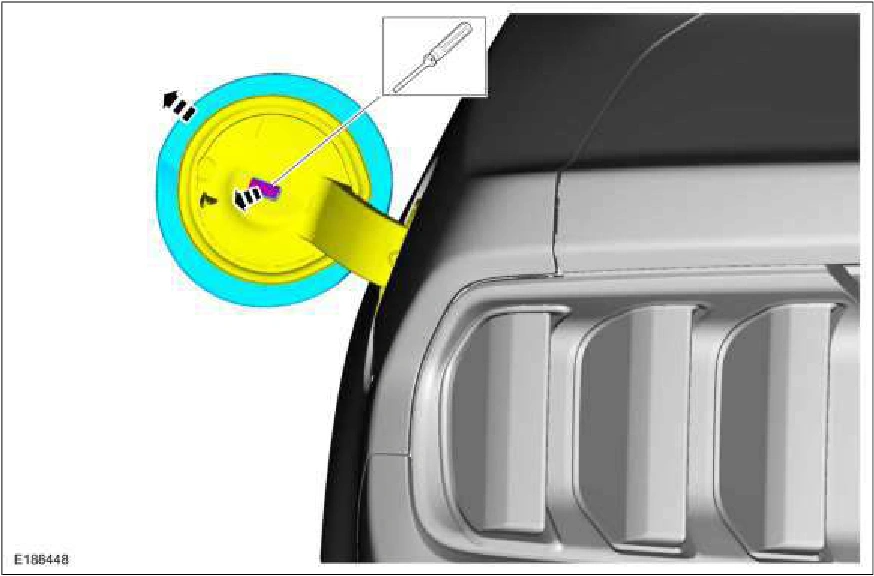

2. Using a screwdriver, pry the retaining tab back and slide the fuel filler door from the fuel filler door hinge.

Fuel Filler Door — original illustration 2, reference 838Original colors & callouts · Select to enlarge

Source reference 838
