Fuel Filler Door Assembly — 2016 workshop reference 841

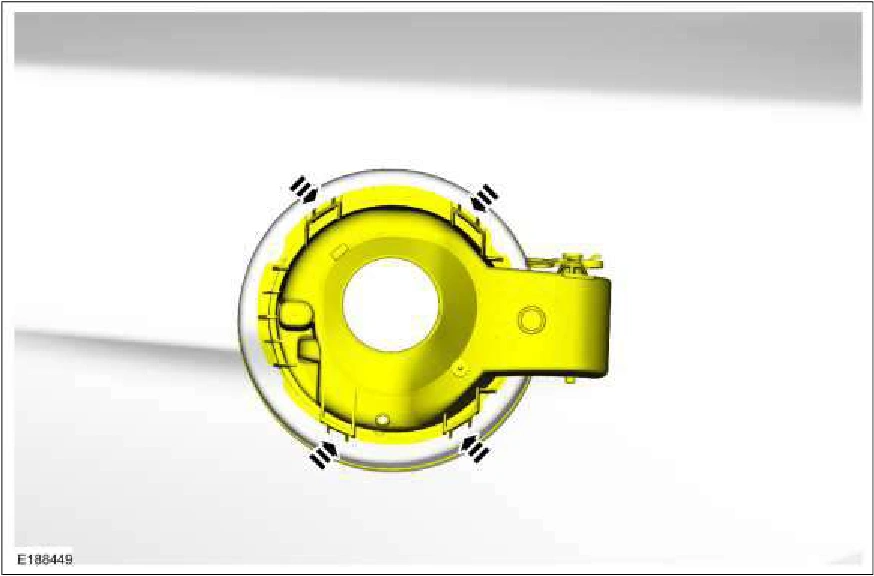

Fuel Filler Door Assembly — original illustration 1, reference 841Original colors & callouts · Select to enlarge

4. NOTE: Clearance is limited. When all four clips release you can rotate the housing out of the vehicle.

Using a screwdriver, punch 4 holes at the indicated areas. Insert the screwdriver and release the clips while pulling the housing away from the vehicle.

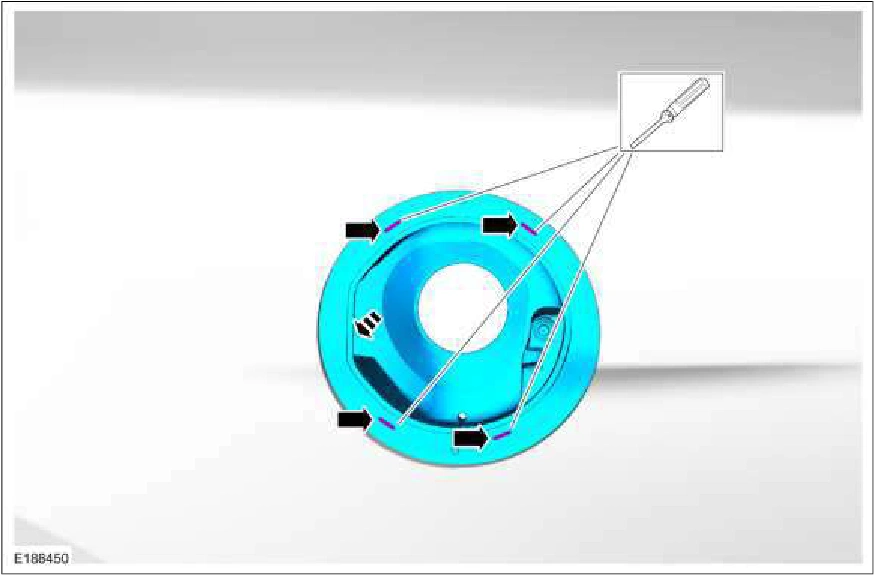

Fuel Filler Door Assembly — original illustration 2, reference 841Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 841
