Luggage Compartment Lid

501-03 Body Closures 2016 Mustang

Removal and Installation Procedure revision date: 02/20/2015

Removal

All vehicles

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the bump stops.

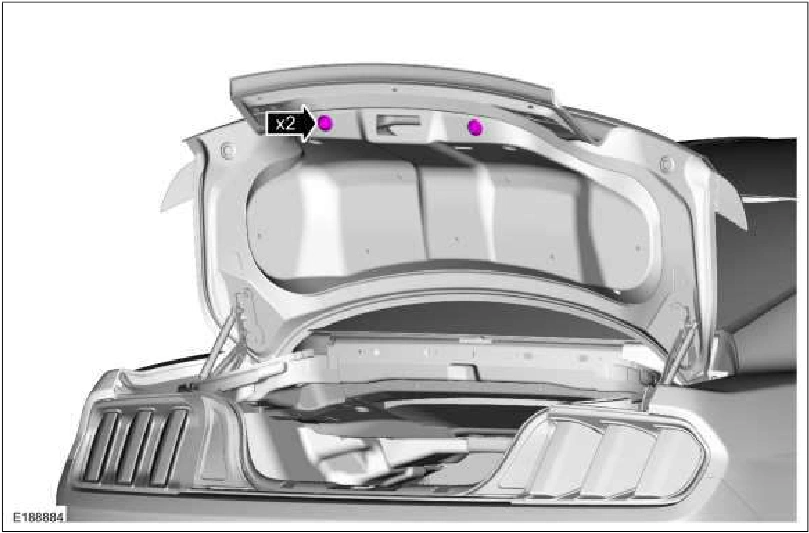

Luggage Compartment Lid — original illustration 1, reference 844Original colors & callouts · Select to enlarge

2. Remove the retainers and the luggage compartment lid trim panel.

Source reference 844
