Luggage Compartment Lid — 2016 workshop reference 845

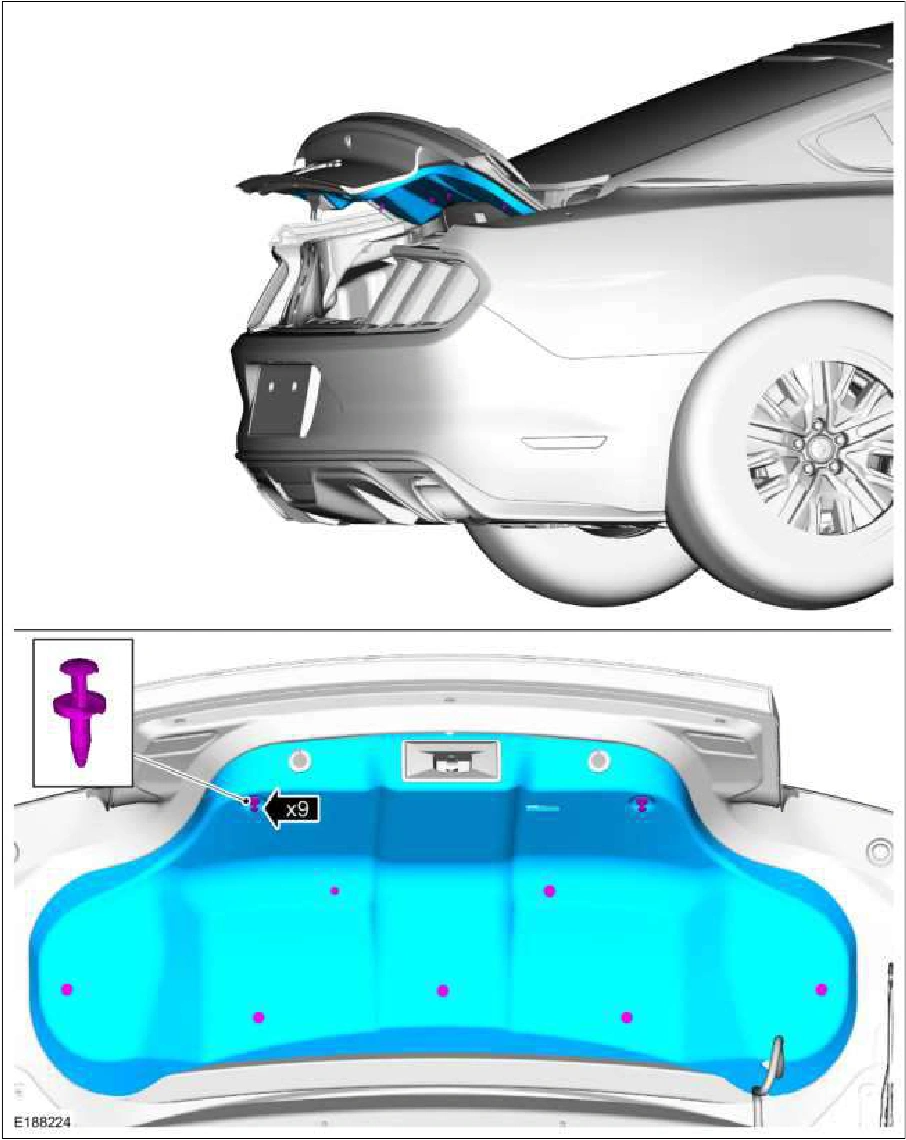

Luggage Compartment Lid — original illustration 1, reference 845Original colors & callouts · Select to enlarge

3. NOTE: This step is only necessary when installing a new component.

Remove the luggage compartment lid moulding. Refer to: Luggage Compartment Lid Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).

4. NOTE: This step is only necessary when installing a new component.

If equipped, remove the rear spoiler. Refer to: Rear Spoiler (501-08 Exterior Trim and Ornamentation, Removal and Installation).

5. Detach the wiring harness retainers and disconnect the luggage compartment lid electrical connectors.
