Luggage Compartment Lid — 2016 workshop reference 846

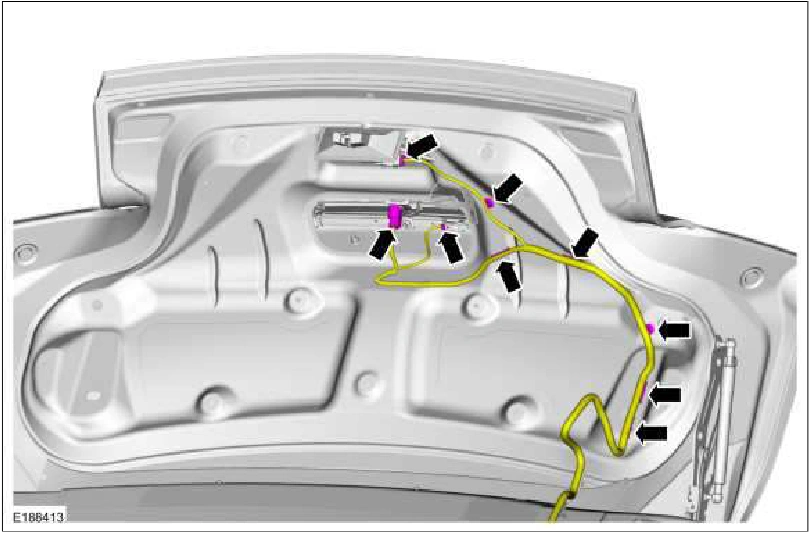

Luggage Compartment Lid — original illustration 1, reference 846Original colors & callouts · Select to enlarge

Convertible

Step 6

1. Detach the latch lock cable retainers.

2. Remove the bolts and position aside the latch lock cable. Torque : 80 lb.in (9 Nm)

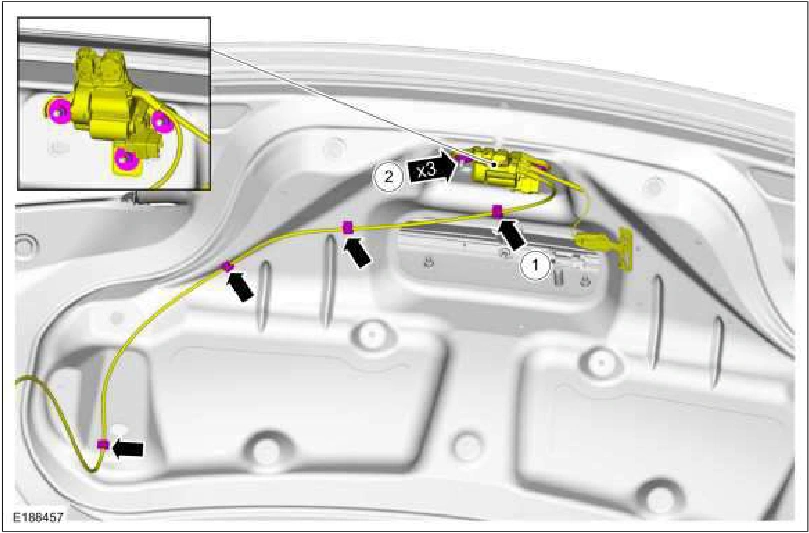

Luggage Compartment Lid — original illustration 2, reference 846Original colors & callouts · Select to enlarge

All vehicles

7. On both sides, remove the strut.

Source reference 846
