Luggage Compartment Lid — 2016 workshop reference 847

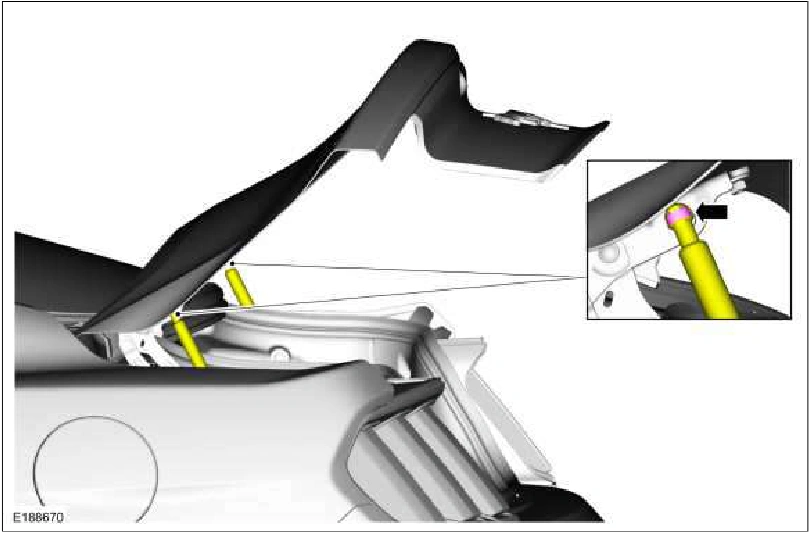

Luggage Compartment Lid — original illustration 1, reference 847Original colors & callouts · Select to enlarge

8. NOTE: This step requires the aid of another technician.

Remove the nuts and the luggage compartment lid. Torque : 106 lb.in (12 Nm)

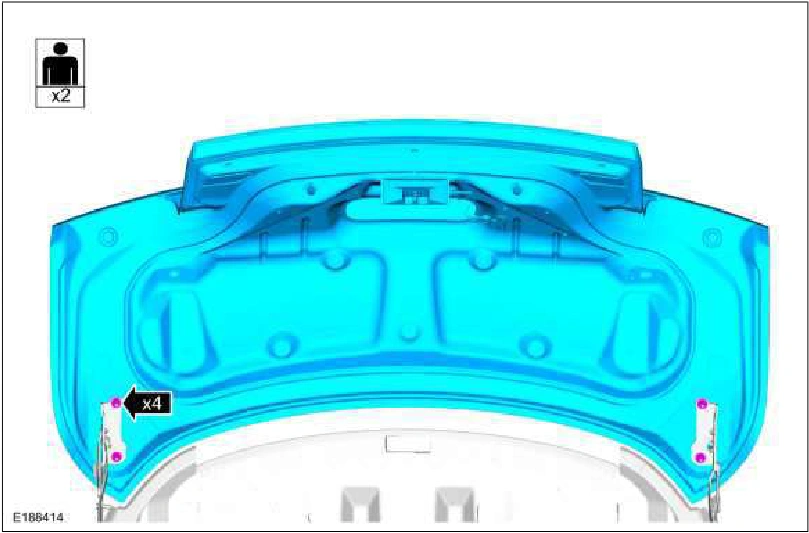

Luggage Compartment Lid — original illustration 2, reference 847Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Check the luggage compartment lid alignment. Align the luggage compartment lid as necessary. Refer to: Luggage Compartment Lid Alignment (501-03 Body Closures, General Procedures).
