A-Pillar Trim Panel - Convertible — 2016 workshop reference 848

501-05 Interior Trim and Ornamentation 2016 Mustang

Removal and Installation Procedure revision date: 04/23/2015

A-Pillar Trim Panel - Convertible

Removal

NOTE: LHD shown, RHD similar.

NOTE: RH side shown, LH side similar.

1. Remove the sun visor.

1. Remove the sun visor cap.

2. Release the clip.

3. Remove the sun visor.

4. If equipped. Disconnect the electrical connector.

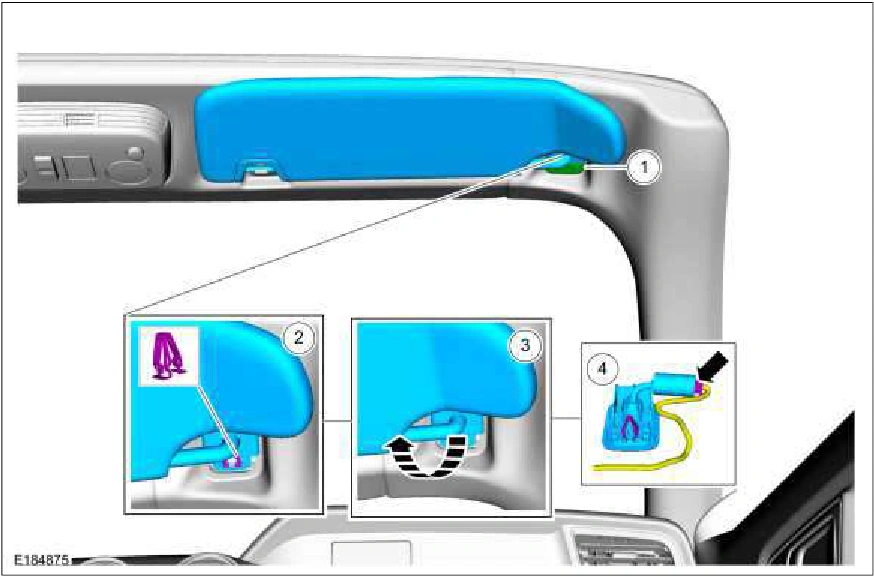

A-Pillar Trim Panel - Convertible — original illustration 1, reference 848Original colors & callouts · Select to enlarge

2. Remove the A-pillar trim panel.

1. Release the retainers.

2. If equipped. Disconnect the speaker electrical connector.

3. Release the clips and remove the A-pillar trim panel.

Source reference 848
