A-Pillar Trim Panel - Coupe — 2016 workshop reference 850

501-05 Interior Trim and Ornamentation 2016 Mustang

Removal and Installation Procedure revision date: 04/23/2015

A-Pillar Trim Panel - Coupe

Removal

NOTE: LHD shown, RHD similar.

NOTE: RH side shown, LH side similar.

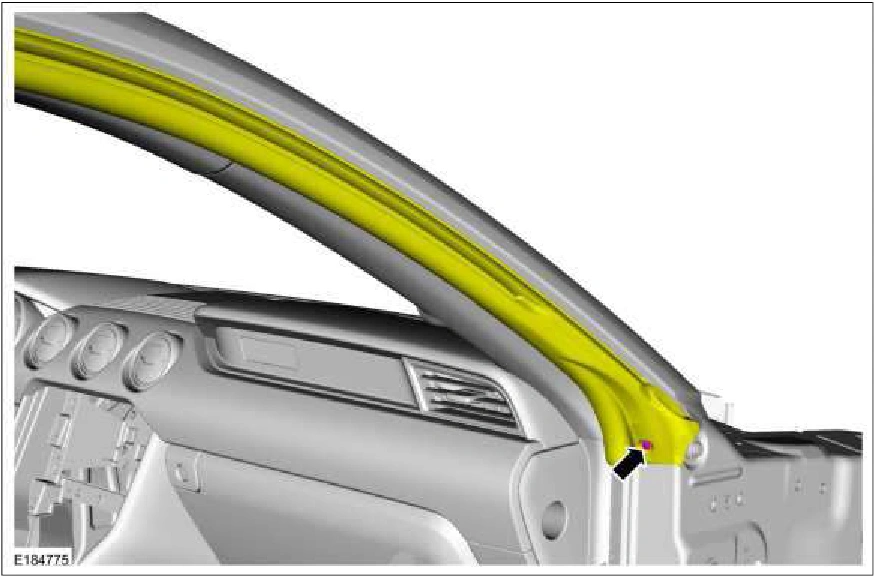

1. Remove the pin-type retainer and position aside the door weatherstrip.

A-Pillar Trim Panel - Coupe — original illustration 1, reference 850Original colors & callouts · Select to enlarge

2. Remove the A-pillar trim panel.

1. Release the clips and disconnect the tether anchor.

2. If equipped Disconnect the speaker electrical connector

3. Release the clips and remove the A-pillar trim panel.
