Front Door Trim Panel — 2016 workshop reference 853

Front Door Trim Panel — original illustration 1, reference 853Original colors & callouts · Select to enlarge

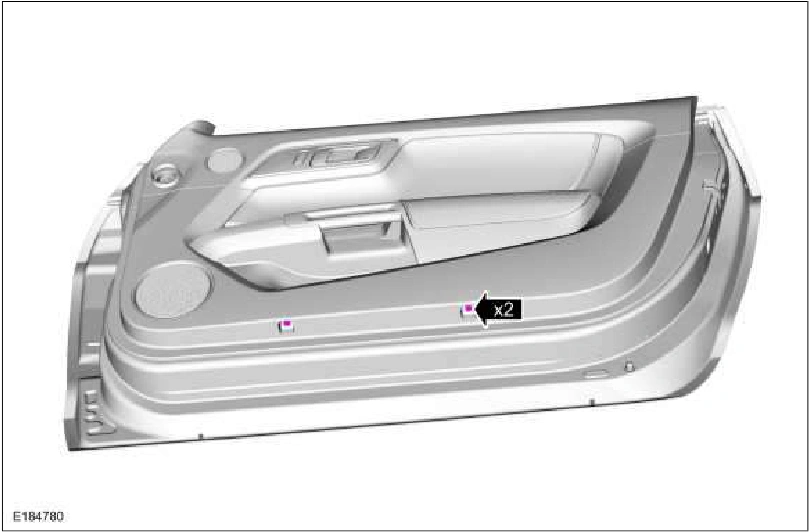

4. Remove the front door trim panel lower retainers. Torque : 13 lb.in (1.5 Nm)

Front Door Trim Panel — original illustration 2, reference 853Original colors & callouts · Select to enlarge

5. Position the rear upper portion of the front door trim panel away from the door.

1. Release the clip.

2. Release the pin-type retainers.
