Front Door Trim Panel — 2016 workshop reference 854

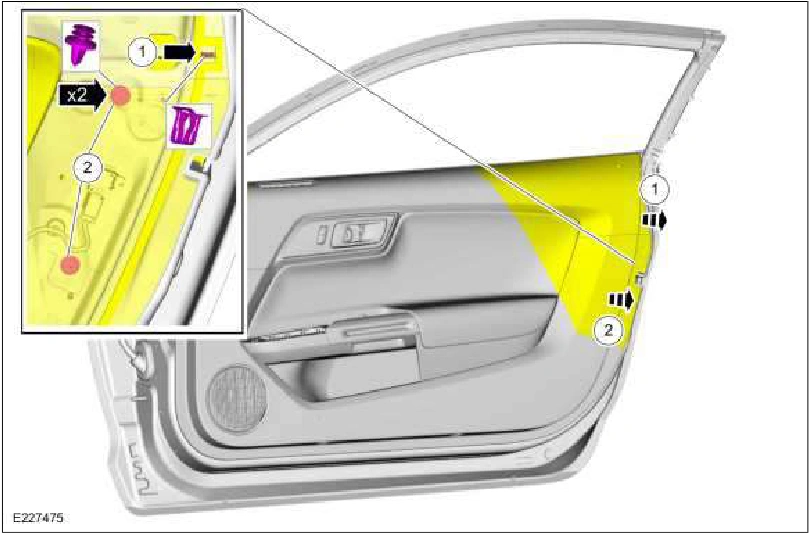

Front Door Trim Panel — original illustration 1, reference 854Original colors & callouts · Select to enlarge

6. Position the rear and lower portion of the front door trim panel away from the door.

1. Release the pin-type retainer.

2. Release the clip.

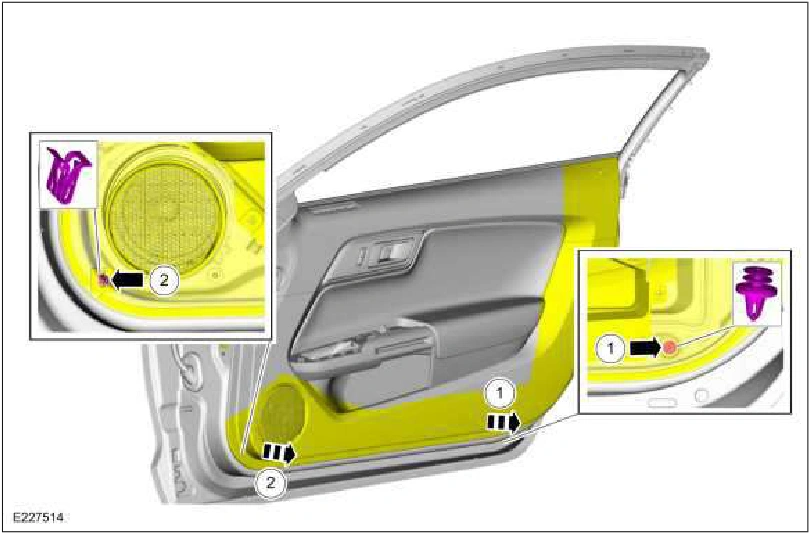

Front Door Trim Panel — original illustration 2, reference 854Original colors & callouts · Select to enlarge

7. Position the front door trim panel away from the door.

1. Release the pin-type retainer.

2. Release the pin-type retainer.
