2016 workshop · Body & Paint

Front Door Trim Panel

501-05 Interior Trim and Ornamentation

2016 MustangReference 855 / 6,619HTML edition
← Chapter contentsProcedure contents

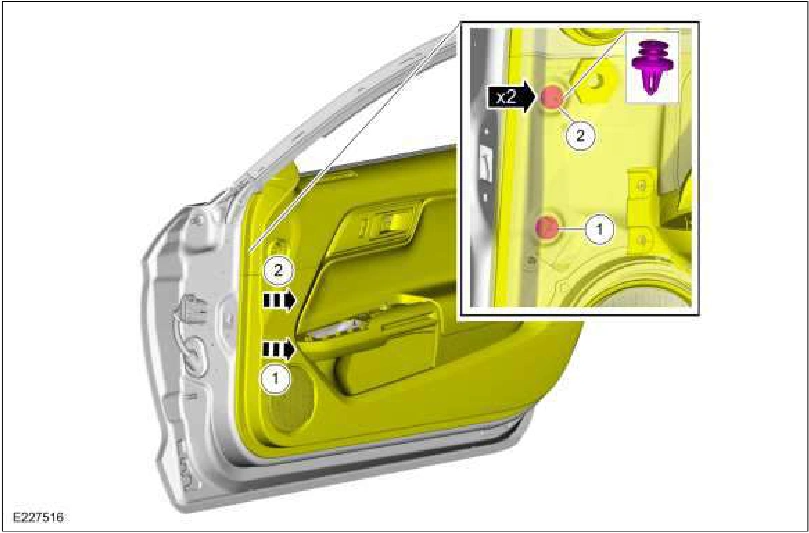

Front Door Trim Panel — original illustration 1, reference 855Original colors & callouts · Select to enlarge

8. Remove the front door trim panel.

1. Lift up and out and release the door trim panel from the door.

2. If equipped. Disconnect the electrical connectors.

3. Release the latch cable.

Source reference 855
