Front Door Trim Panel

501-05 Interior Trim and Ornamentation 2016 Mustang

Removal and Installation Procedure revision date: 01/22/2016

Base Part Number: 23942

Removal

NOTE: LHD shown, RHD similar.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: RH side shown, LH side similar.

1. Remove the cover and the upper trim panel bolt. Torque : 48 lb.in (5.4 Nm)

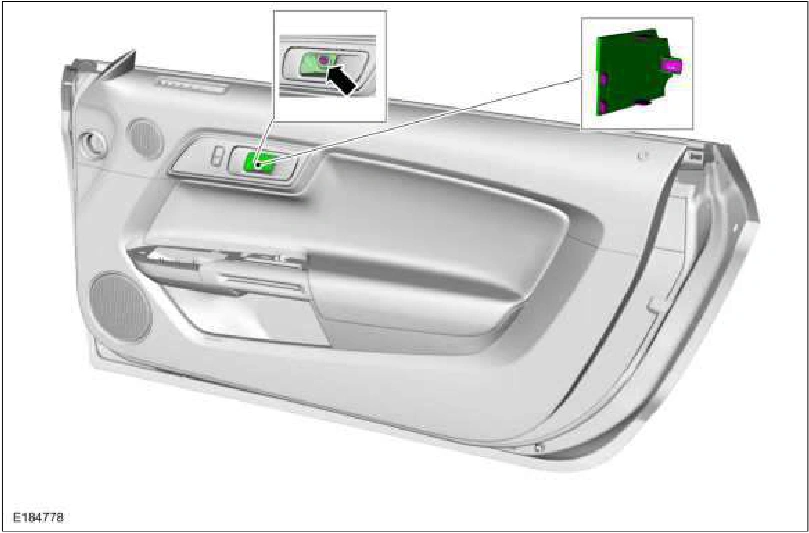

Front Door Trim Panel — original illustration 1, reference 852Original colors & callouts · Select to enlarge

2. Remove the front door window control switch. Refer to: Front Door Window Control Switch (501-11 Glass, Frames and Mechanisms, Removal and Installation).

3. Remove the front door trim panel center bolt. Torque : 48 lb.in (5.4 Nm)

Source reference 852
