Fuel Filler Door Spring

501-03 Body Closures 2016 Mustang

Removal and Installation Procedure revision date: 02/20/2015

Removal

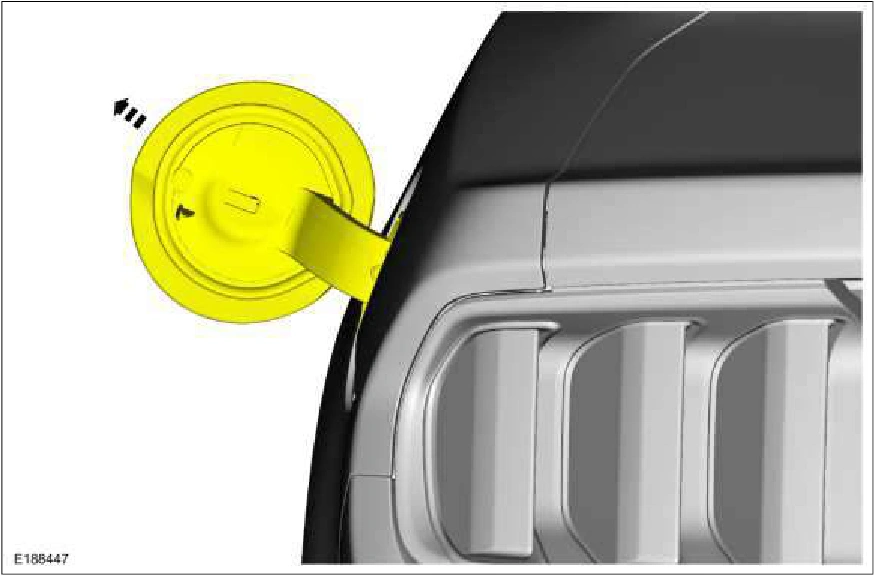

1. Open the fuel filler door.

Fuel Filler Door Spring — original illustration 1, reference 842Original colors & callouts · Select to enlarge

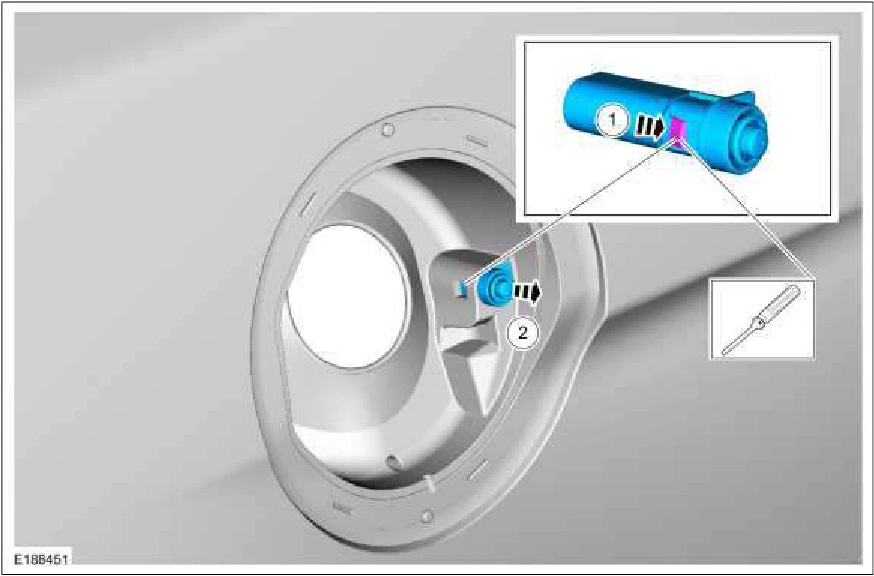

2. Using a screwdriver, press the tab to release the fuel filler door spring from the fuel filler door assembly.

Fuel Filler Door Spring — original illustration 2, reference 842Original colors & callouts · Select to enlarge
