501-03 Body Closures 2016 Mustang

Removal and Installation Procedure revision date: 03/13/2015

Front Door Check Arm

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

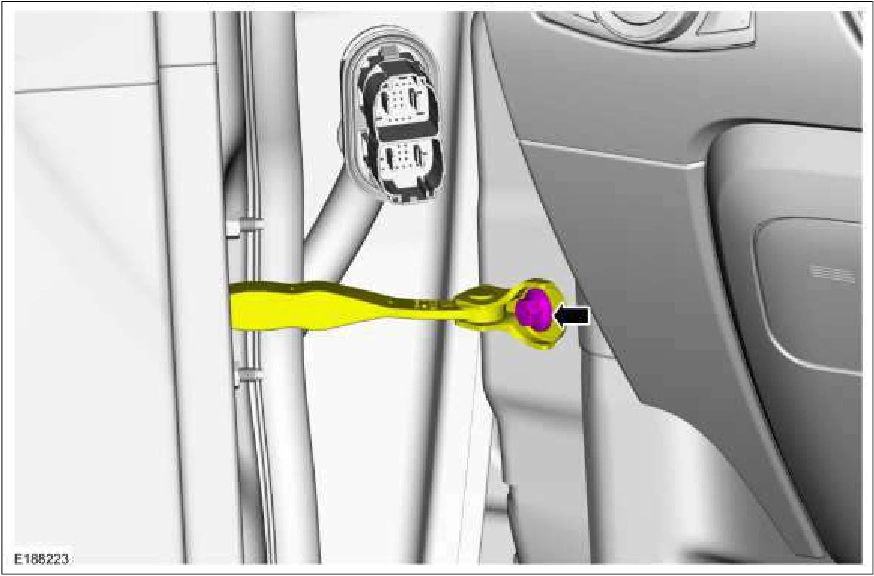

1. Remove the check arm bolt. Torque : 18 lb.ft (25 Nm)

Front Door Check Arm — original illustration 1, reference 835Original colors & callouts · Select to enlarge

2. Remove the front door trim panel. Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

3. Remove the nuts. Torque : 106 lb.in (12 Nm)
