Front Door

501-03 Body Closures 2016 Mustang

Removal and Installation Procedure revision date: 07/10/2015

Base Part Number: 20124

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

1. Disconnect the front door electrical connector.

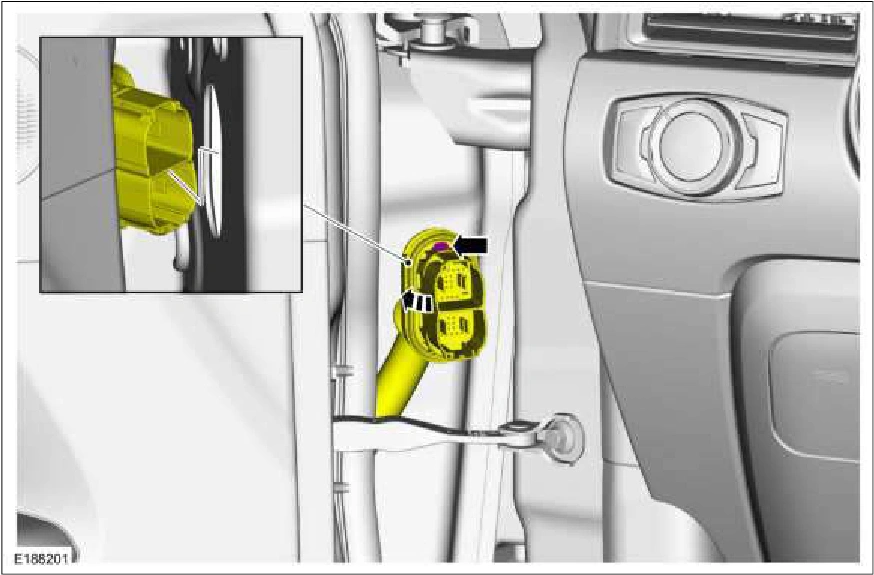

Front Door — original illustration 1, reference 832Original colors & callouts · Select to enlarge

2. Remove the check arm bolt. Torque : 18 lb.ft (25 Nm)

Source reference 832
