Luggage Compartment Lid Alignment — 2016 workshop reference 830

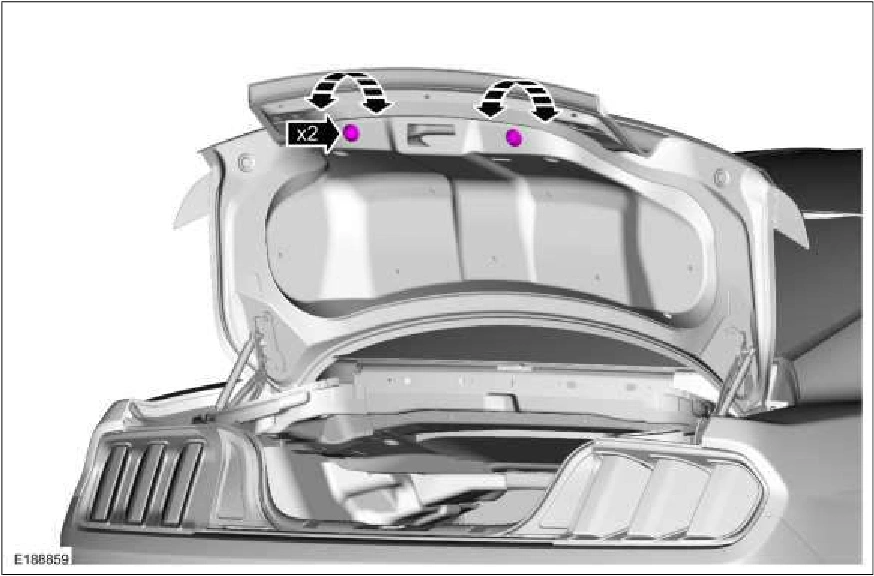

Luggage Compartment Lid Alignment — original illustration 1, reference 830Original colors & callouts · Select to enlarge

11. Adjust the luggage compartment lid to specifications. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

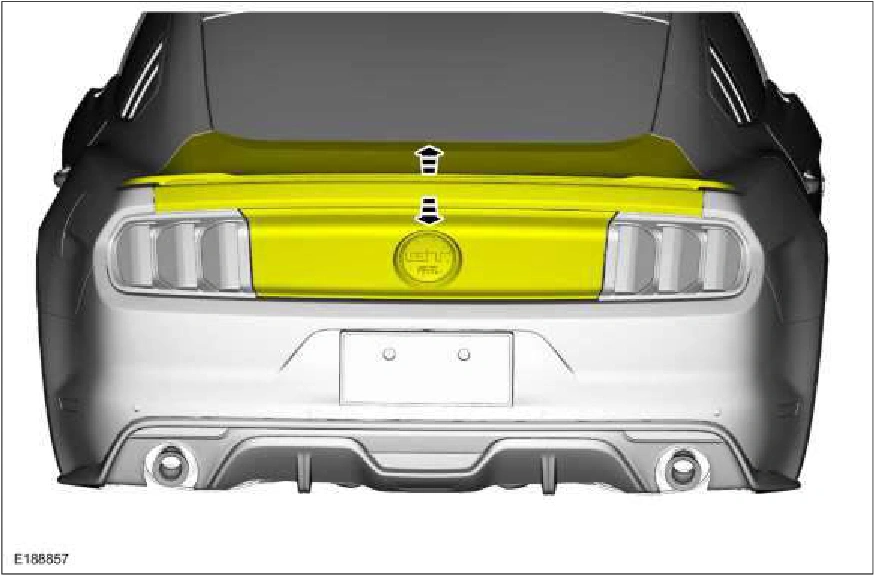

Luggage Compartment Lid Alignment — original illustration 2, reference 830Original colors & callouts · Select to enlarge

All alignments

12. Check the body to luggage compartment lid dimensions. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
