Luggage Compartment Lid Alignment — 2016 workshop reference 828

Luggage Compartment Lid Alignment — original illustration 1, reference 828Original colors & callouts · Select to enlarge

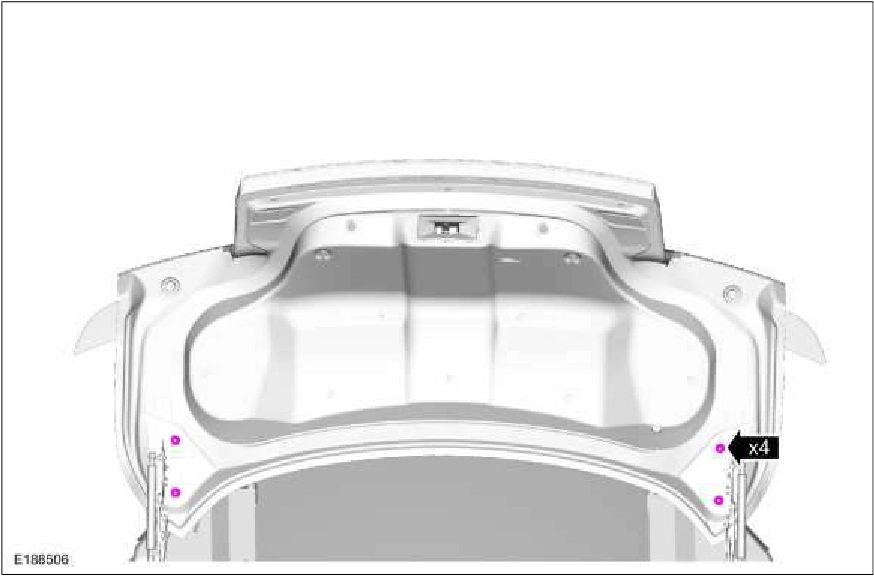

Luggage compartment lid up and down alignments

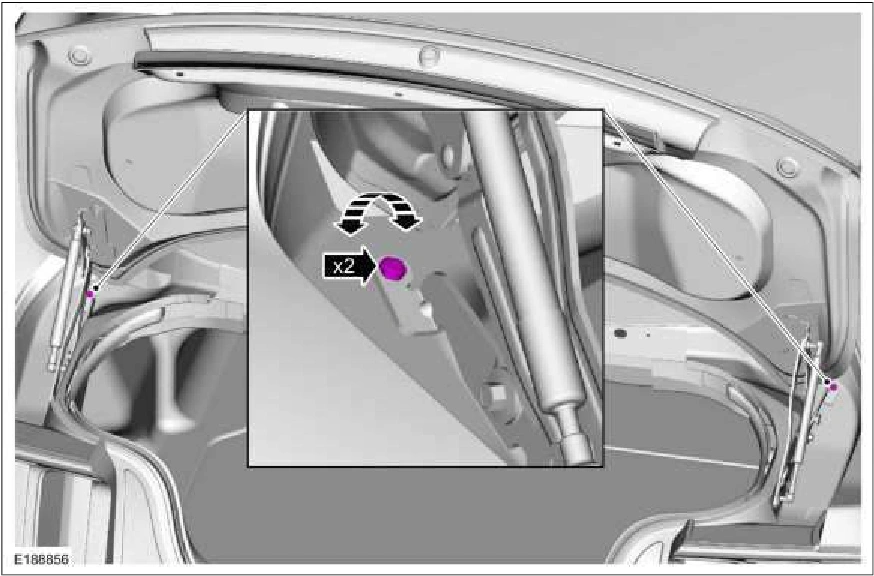

7. Adjust the adjusting screws.

Luggage Compartment Lid Alignment — original illustration 2, reference 828Original colors & callouts · Select to enlarge

8. Adjust the luggage compartment lid to specifications. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
