Luggage Compartment Lid Alignment

501-03 Body Closures 2016 Mustang

General Procedures Procedure revision date: 02/20/2015

Inspection

NOTE: Coupe shown, convertible similar.

1. Check luggage compartment lid to body dimensions. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

All alignments

NOTE: Removal steps in this procedure may contain installation details.

2. Remove the luggage compartment lid latch. Refer to: Luggage Compartment Lid Latch - Coupe (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

Luggage compartment lid fore and aft, left and right alignments

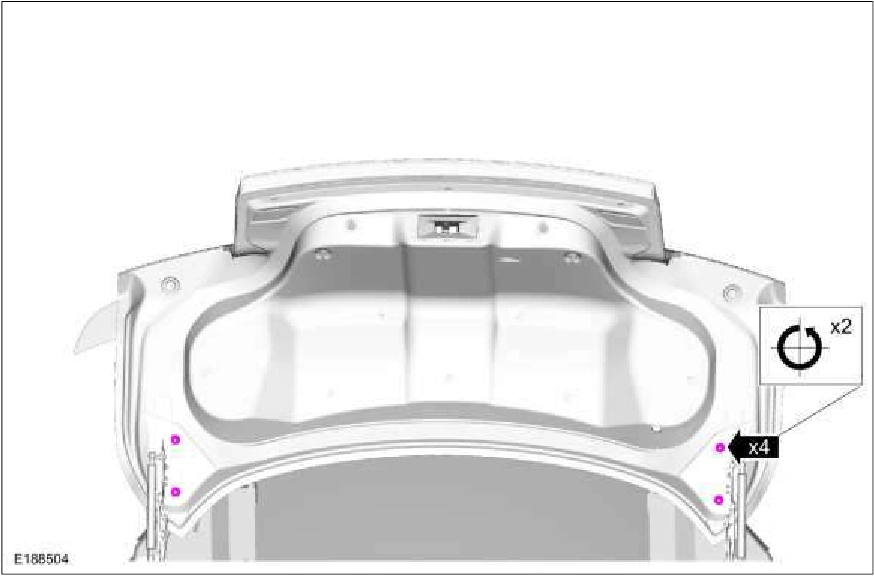

3. Loosen the bolts to permit movement of the luggage compartment lid. Loosen: : 2 turn(s)

Luggage Compartment Lid Alignment — original illustration 1, reference 826Original colors & callouts · Select to enlarge

4. Adjust the luggage compartment lid to specifications. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
