Hood Alignment — 2016 workshop reference 824

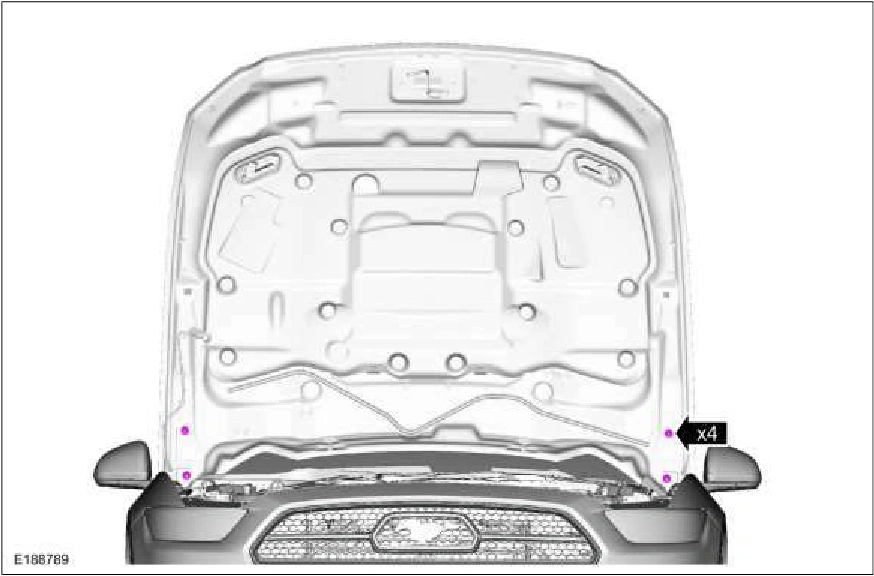

Hood Alignment — original illustration 1, reference 824Original colors & callouts · Select to enlarge

Hood front up and down alignments

5. Adjust the bump stop rubbers.

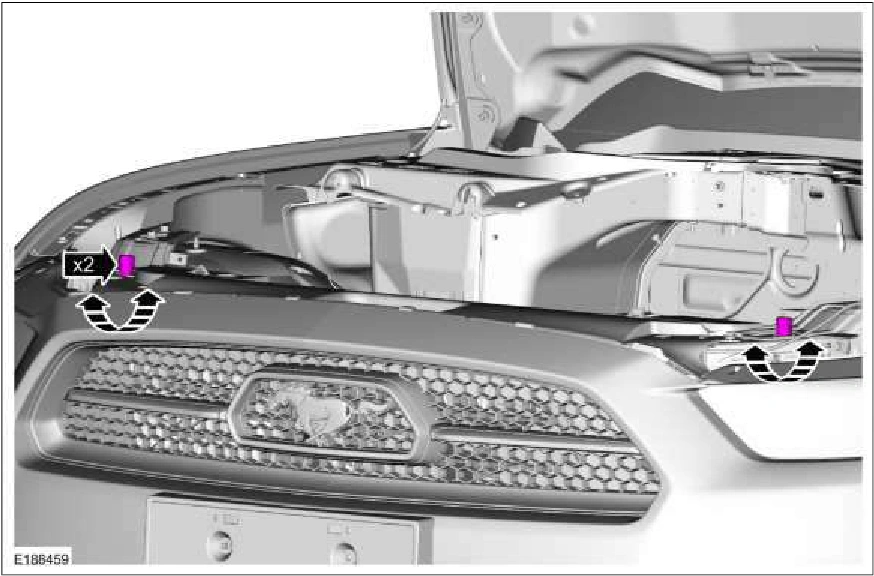

Hood Alignment — original illustration 2, reference 824Original colors & callouts · Select to enlarge

6. Adjust the hood to specification. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
