Front Door Alignment — 2016 workshop reference 821

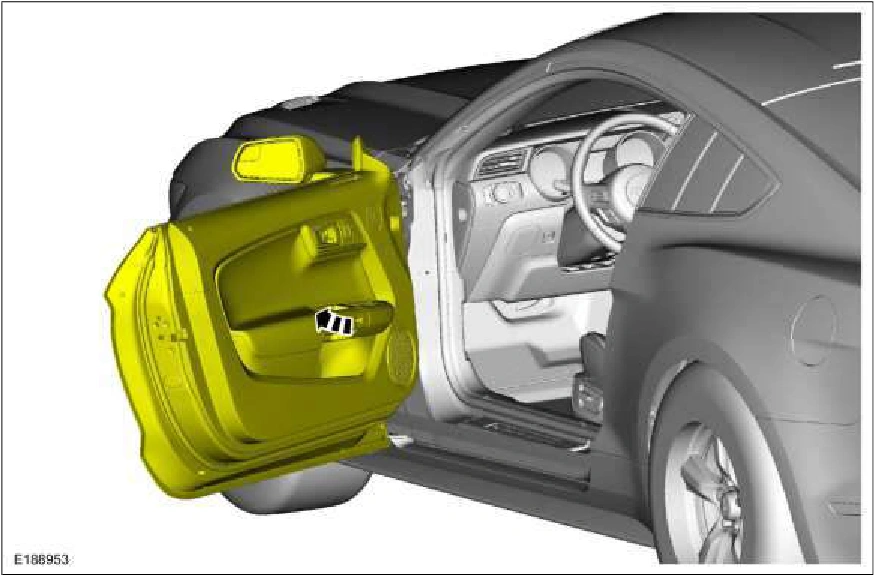

Front Door Alignment — original illustration 1, reference 821Original colors & callouts · Select to enlarge

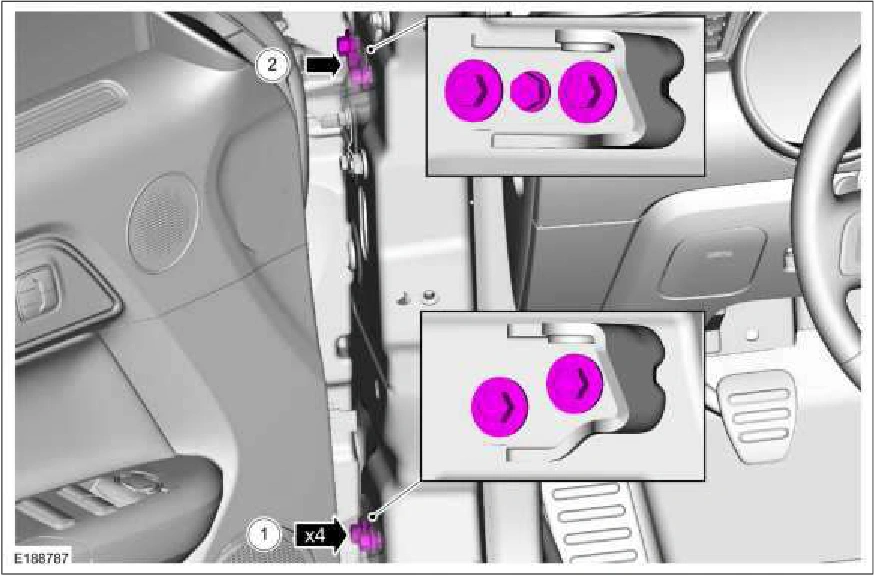

11. Tighten the bolts. Torque :

1.: 22 lb.ft (30 Nm)

2.: 89 lb.in (10 Nm)

Front Door Alignment — original illustration 2, reference 821Original colors & callouts · Select to enlarge

All alignments

12. Loosen the bolts to permit movement of the striker assembly. Loosen: : 2 turn(s)

Source reference 821

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
