Front Door Alignment — 2016 workshop reference 819

Front Door Alignment — original illustration 1, reference 819Original colors & callouts · Select to enlarge

7. Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

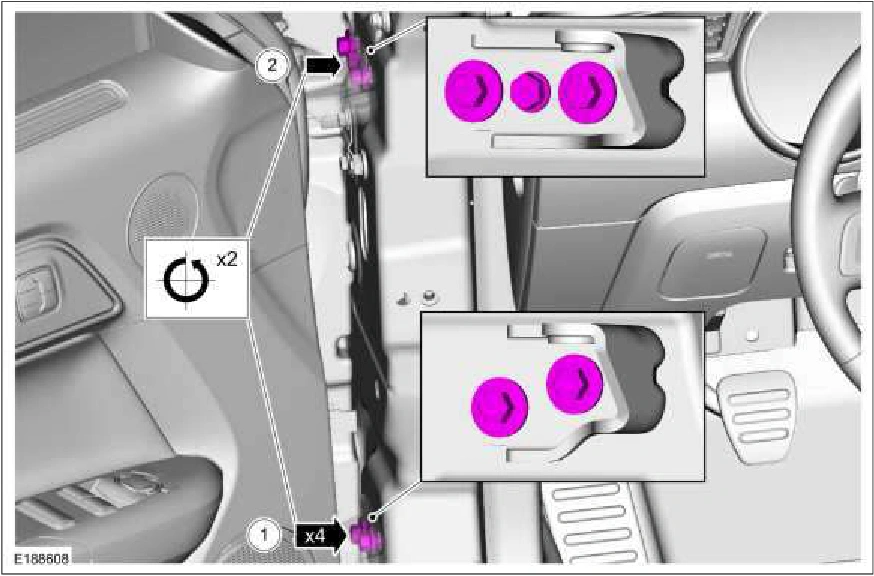

Front Door Alignment — original illustration 2, reference 819Original colors & callouts · Select to enlarge

8. Carefully close the door.

Source reference 819

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
