Front Door Alignment — 2016 workshop reference 822

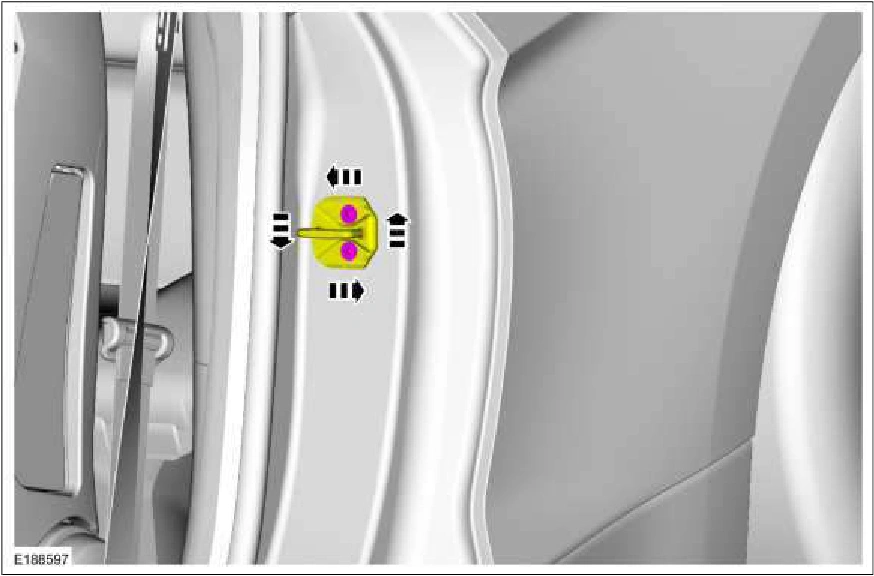

Front Door Alignment — original illustration 1, reference 822Original colors & callouts · Select to enlarge

13. Check body to front door dimensions. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

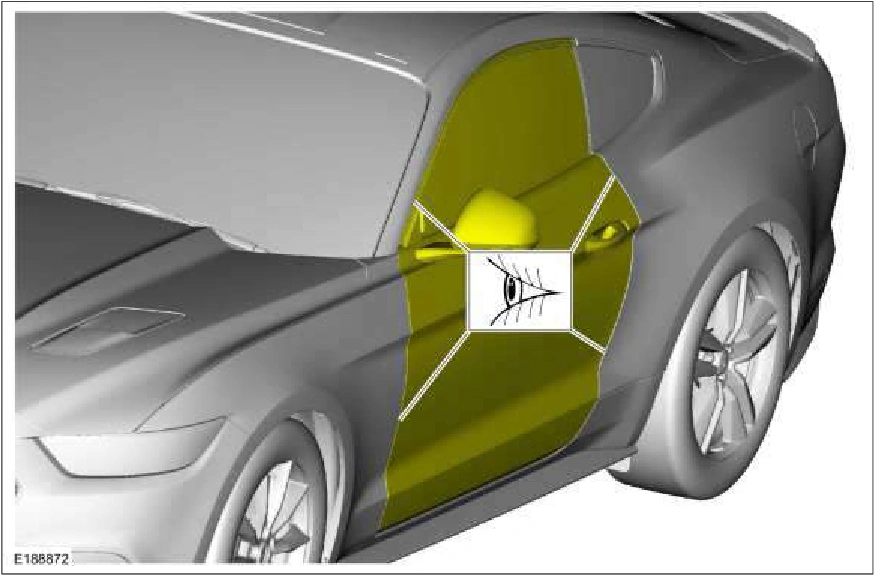

Front Door Alignment — original illustration 2, reference 822Original colors & callouts · Select to enlarge

14. Check the front door glass alignment. Refer to: Door Window Glass Adjustment - Convertible (501-11 Glass, Frames and Mechanisms, General Procedures). Refer to: Door Window Glass Adjustment - Coupe (501-11 Glass, Frames and Mechanisms, General Procedures).

15. Install the removed components.
