Hood Alignment — 2016 workshop reference 825

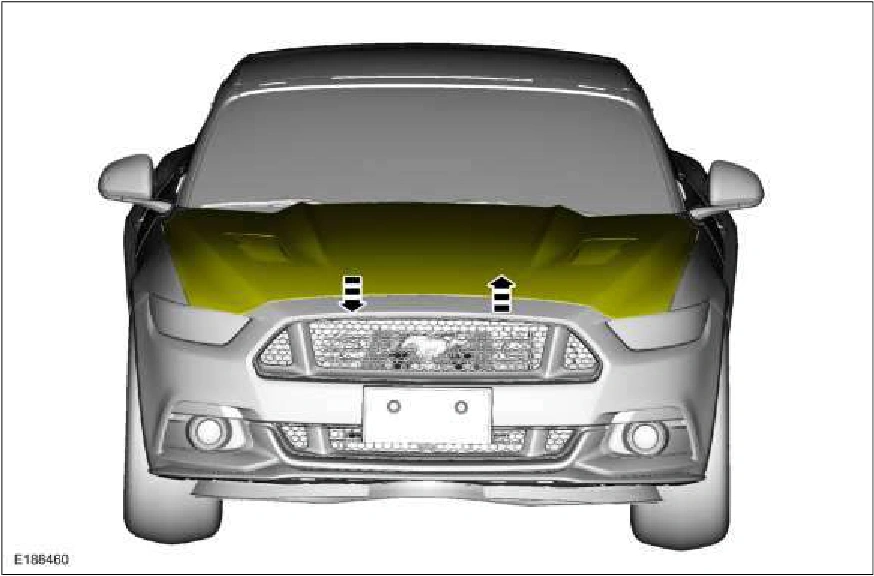

Hood Alignment — original illustration 1, reference 825Original colors & callouts · Select to enlarge

All alignments

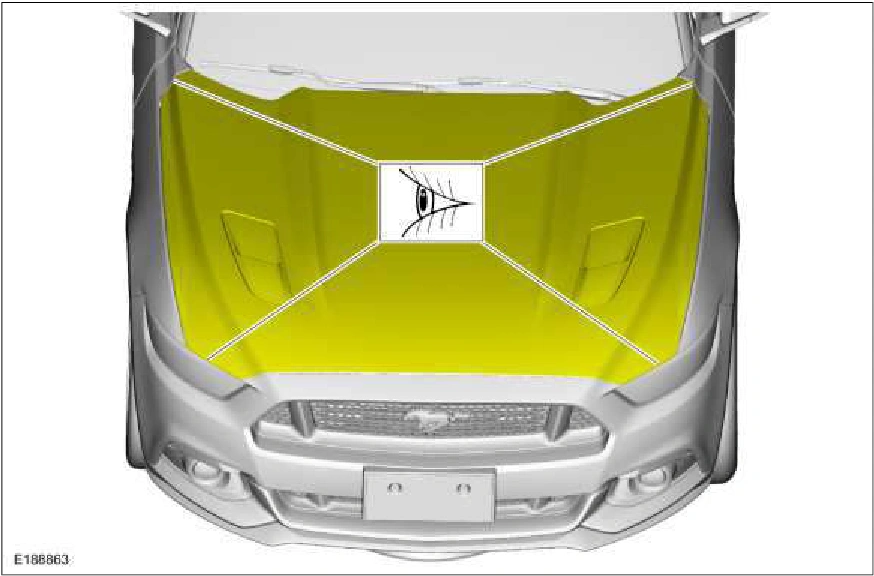

7. Check the body to hood dimensions. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

Hood Alignment — original illustration 2, reference 825Original colors & callouts · Select to enlarge

8. Install the removed components.
