Luggage Compartment Lid Alignment — 2016 workshop reference 827

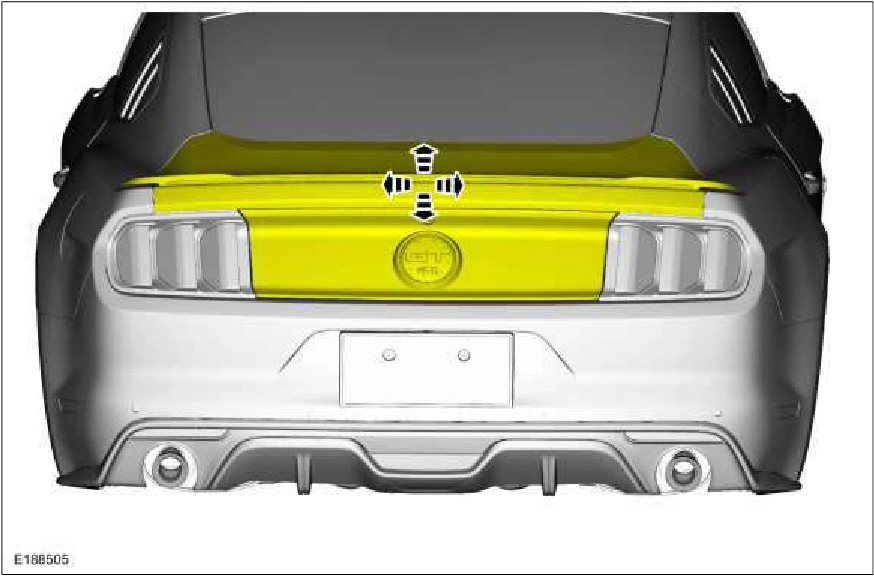

Luggage Compartment Lid Alignment — original illustration 1, reference 827Original colors & callouts · Select to enlarge

5. Carefully open luggage compartment lid.

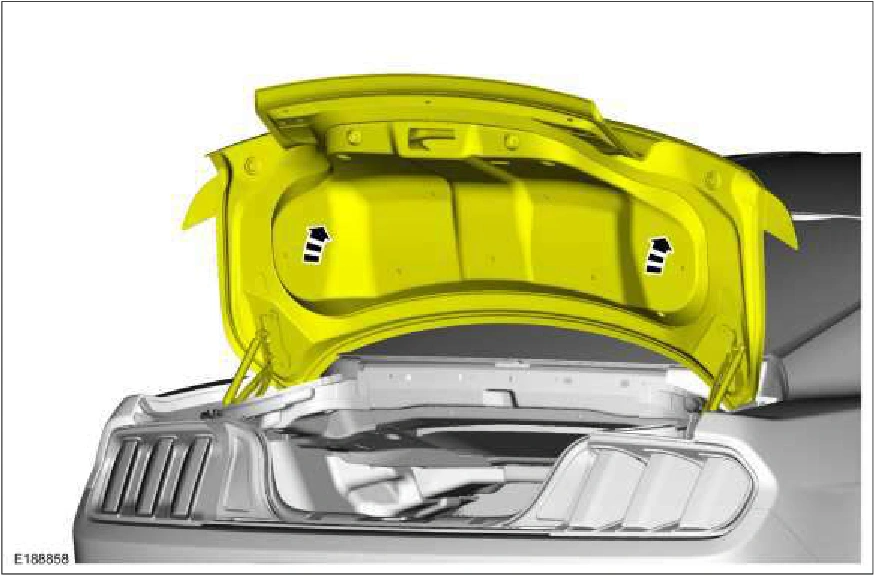

Luggage Compartment Lid Alignment — original illustration 2, reference 827Original colors & callouts · Select to enlarge

6. Tighten the nuts. Torque : 106 lb.in (12 Nm)

Source reference 827
