Front Door Alignment — 2016 workshop reference 820

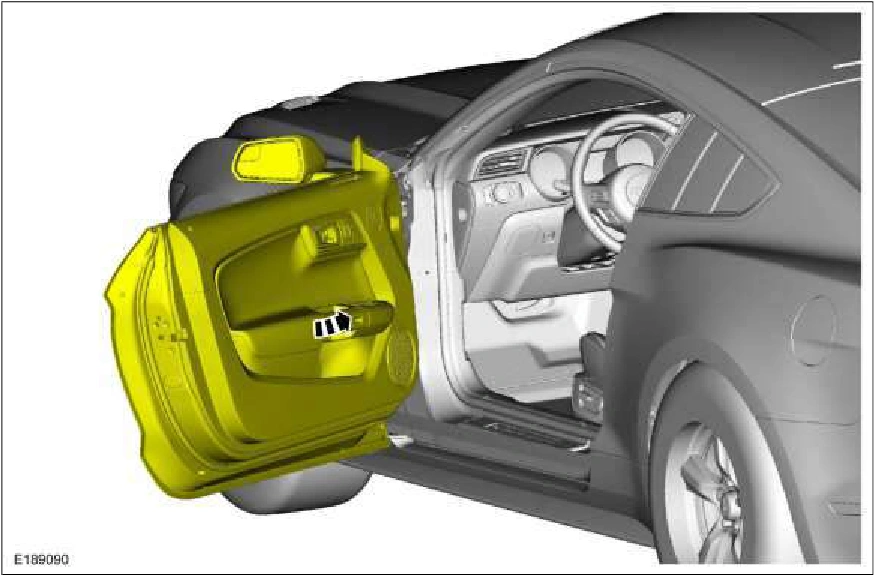

Front Door Alignment — original illustration 1, reference 820Original colors & callouts · Select to enlarge

9. Adjust the door to specification. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

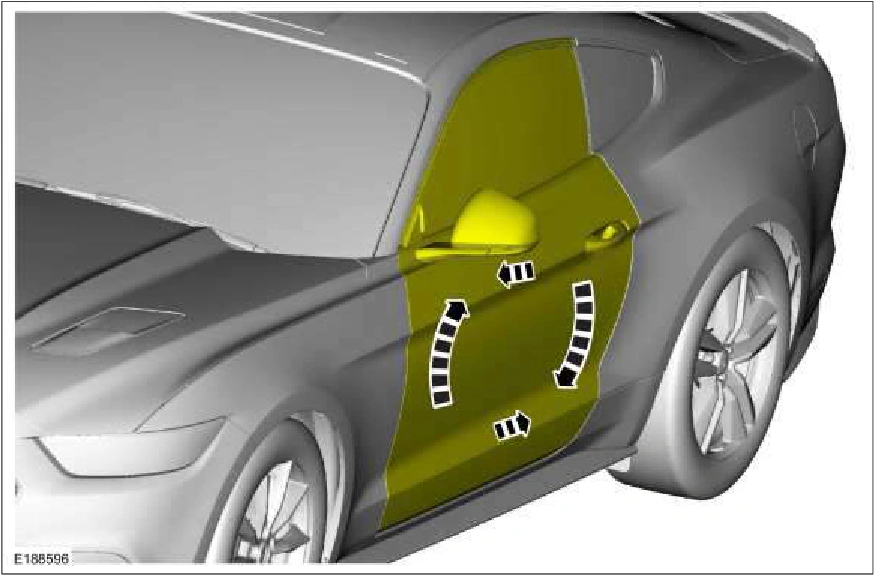

Front Door Alignment — original illustration 2, reference 820Original colors & callouts · Select to enlarge

10. Carefully open the door.
