Front Door Alignment — 2016 workshop reference 818

Front Door Alignment — original illustration 1, reference 818Original colors & callouts · Select to enlarge

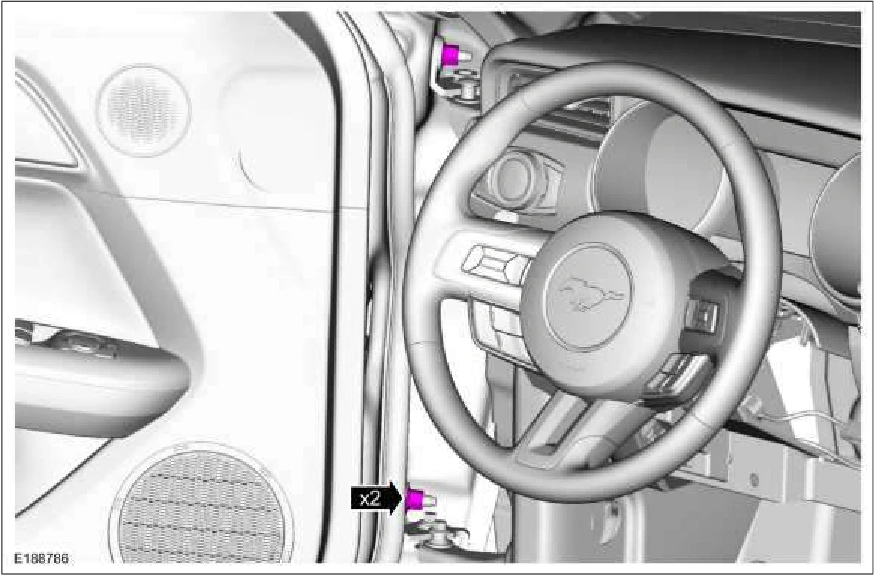

5. Tighten the nuts. Torque : 22 lb.ft (30 Nm)

Front Door Alignment — original illustration 2, reference 818Original colors & callouts · Select to enlarge

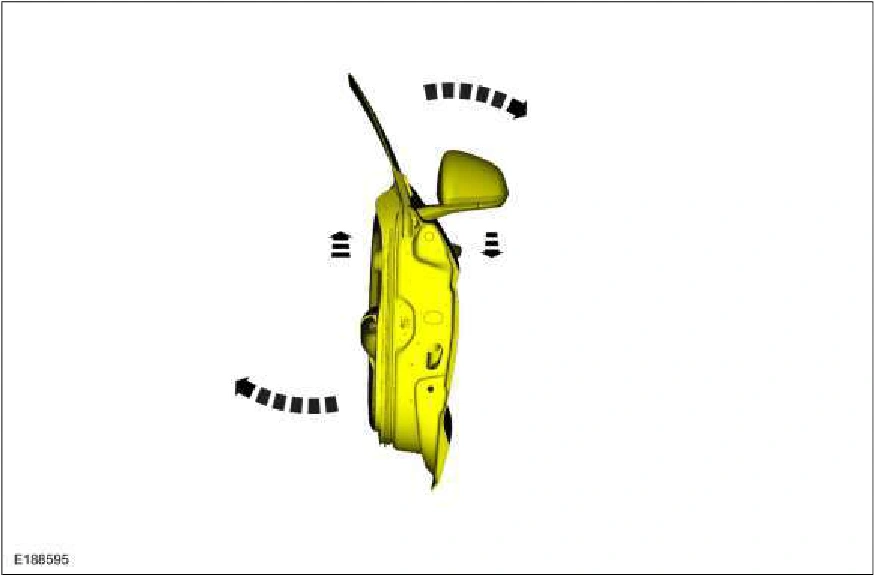

Front door fore, aft and tilt alignment

6. Open the door.
