Front Door Alignment

501-03 Body Closures 2016 Mustang

General Procedures Procedure revision date: 02/20/2015

Base Part Number: 20124

Inspection

NOTE: Coupe shown, convertible similar.

1. Check front door to body dimensions. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

Adjustment

All alignments

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

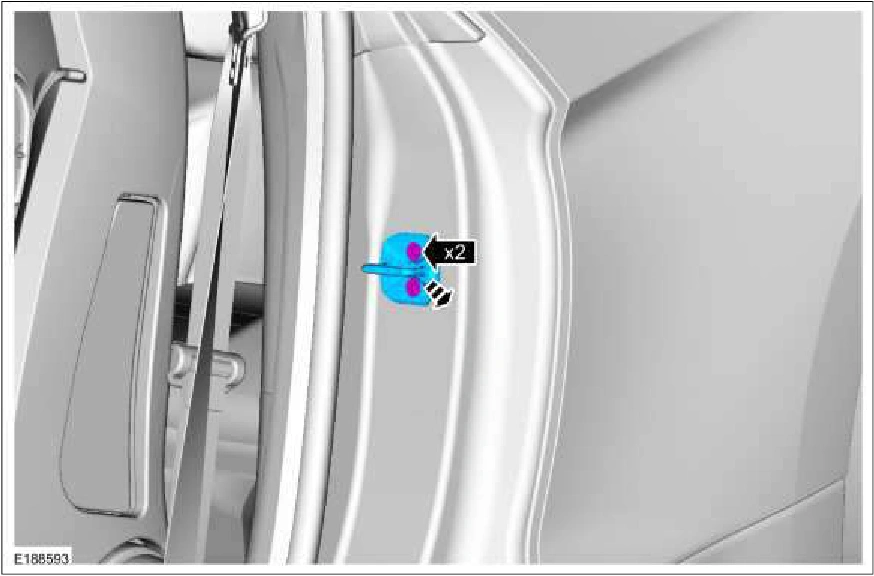

1. Remove the bolts and the striker assembly. Torque : 18 lb.ft (25 Nm)

Front Door Alignment — original illustration 1, reference 816Original colors & callouts · Select to enlarge

Front door in and out, up and down alignment

2. Open the door.

Source reference 816
