Front Door — 2016 workshop reference 833

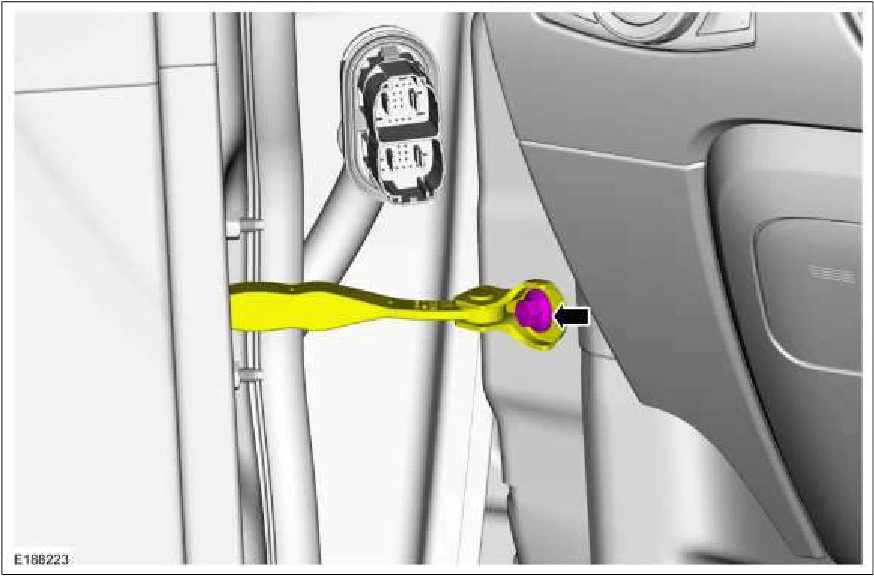

Front Door — original illustration 1, reference 833Original colors & callouts · Select to enlarge

3. NOTE: This step requires the aid of another technician.

Remove the door hinge pivot bolts. Torque : 150 lb.in (17 Nm)

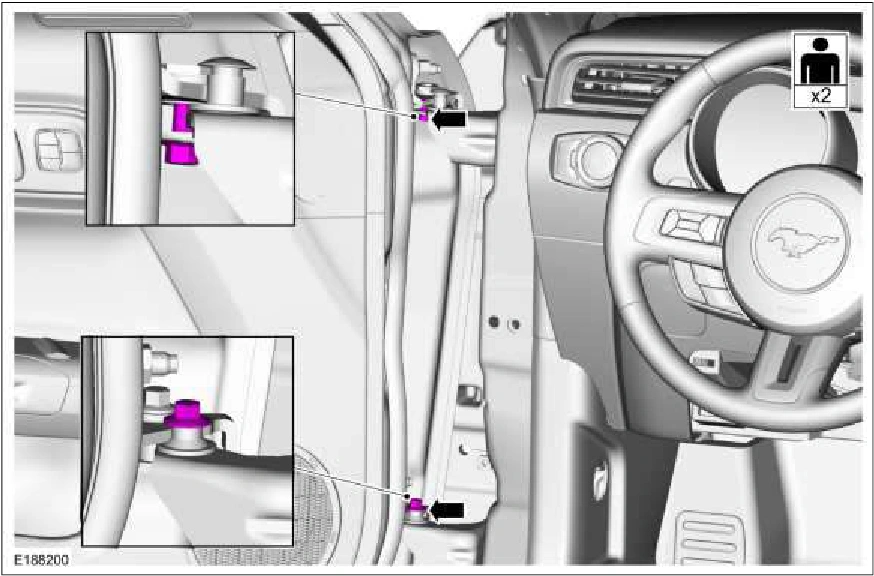

Front Door — original illustration 2, reference 833Original colors & callouts · Select to enlarge

4. NOTE: This step requires the aid of another technician.

Remove the door.
