2016 workshop · Body & Paint

Front Door

501-03 Body Closures

2016 MustangReference 834 / 6,619HTML edition
← Chapter contentsProcedure contents

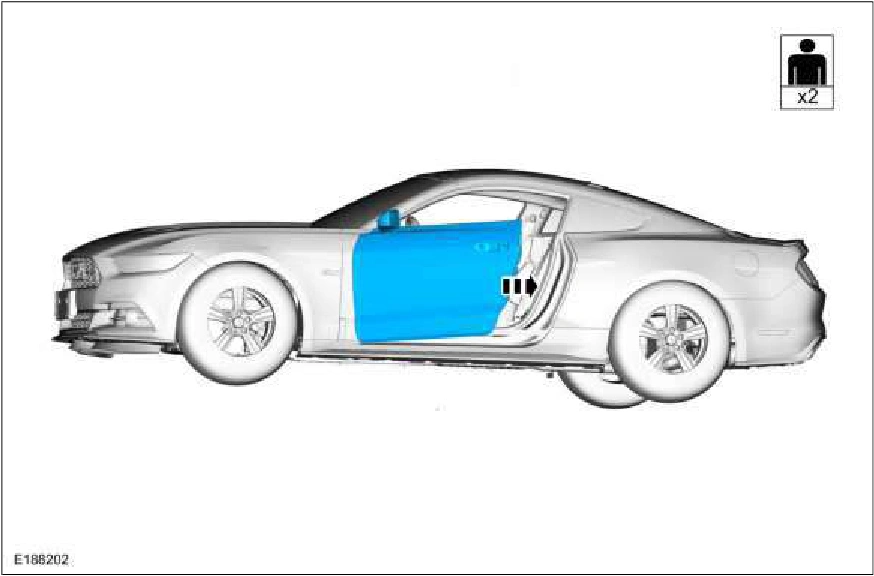

Front Door — original illustration 1, reference 834Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. NOTE: This step is only necessary when installing a new component.

Check the door to body alignment. Align the door as necessary. Refer to: Front Door Alignment (501-03 Body Closures, General Procedures).

Copyright © 2016 Ford Motor Company

Source reference 834
