Loadspace Trim Panel - Convertible

Removal

NOTE: LHD shown, RHD similar.

NOTE: RH side shown, LH side similar.

1. Remove the rear seat backrest. Refer to: Rear Seat Backrest - Convertible (501-10B Rear Seats, Removal and Installation).

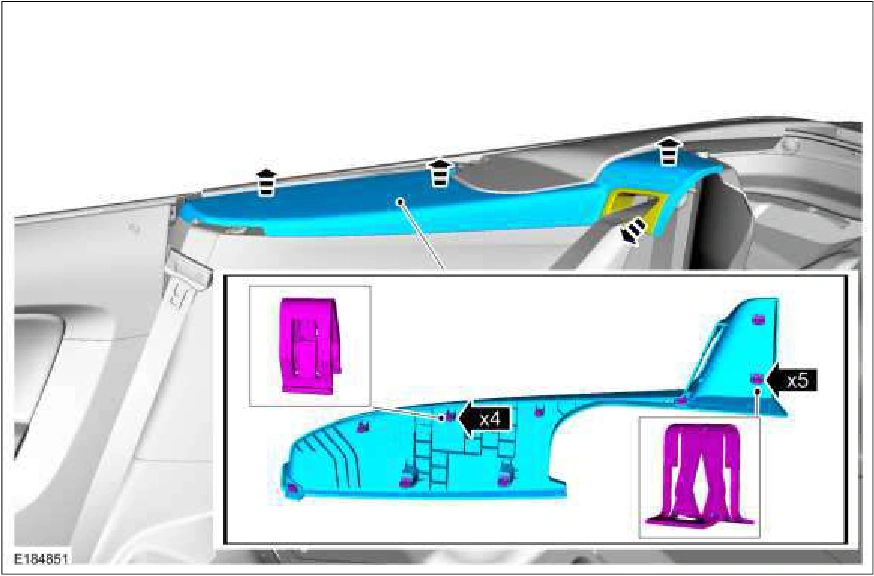

2. Position the safety belt guide aside, release the clips and remove the upper loadspace trim panel.

Loadspace Trim Panel - Convertible — original illustration 1, reference 866Original colors & callouts · Select to enlarge

3. Remove the middle loadspace trim panel.

1. Release the clips.

2. Pull forward and outward to release the rear tab, position the front and rear safety belts aside and remove the middle loadspace trim panel.

Source reference 866
