Loadspace Trim Panel - Coupe — 2016 workshop reference 869

501-05 Interior Trim and Ornamentation 2016 Mustang

Removal and Installation Procedure revision date: 08/11/2015

Loadspace Trim Panel - Coupe

Removal

NOTE: LHD shown, RHD similar.

NOTE: RH side shown, LH side similar.

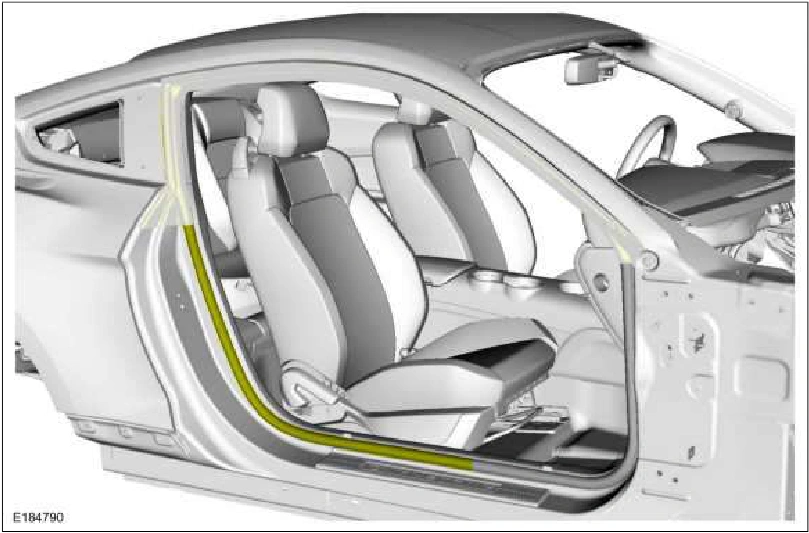

1. Position aside the door weatherstrip.

Loadspace Trim Panel - Coupe — original illustration 1, reference 869Original colors & callouts · Select to enlarge

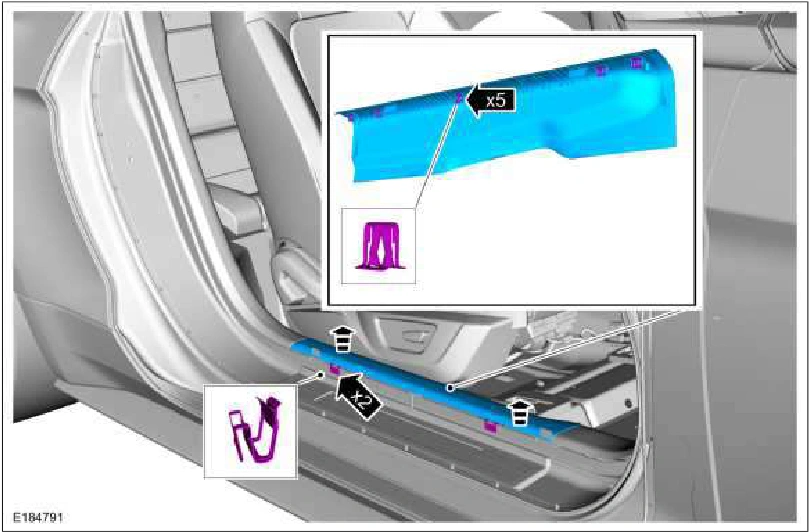

2. Release the clips and remove the scuff plate trim panel.

Loadspace Trim Panel - Coupe — original illustration 2, reference 869Original colors & callouts · Select to enlarge

3. Remove the rear seat cushion.
