2016 workshop · Body & Paint

Loadspace Trim Panel - Coupe

501-05 Interior Trim and Ornamentation

2016 MustangReference 870 / 6,619HTML edition
← Chapter contentsProcedure contents

Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

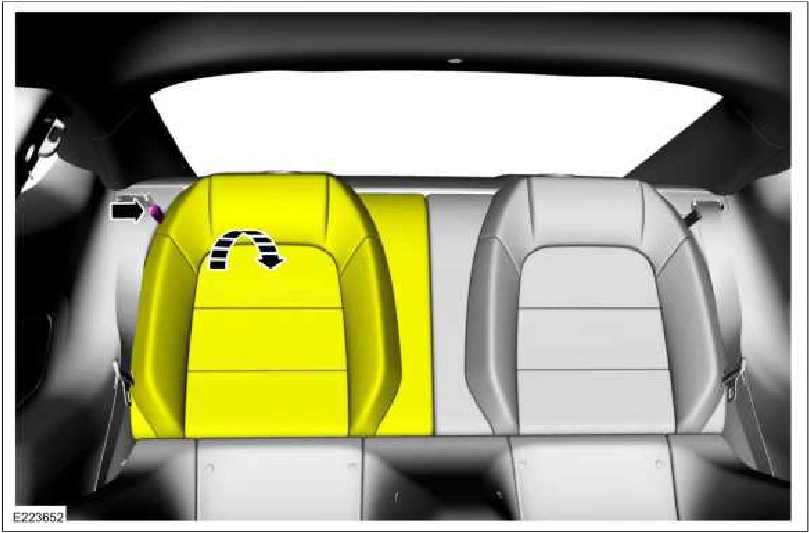

4. Release the latch and position the seat backrest down.

Loadspace Trim Panel - Coupe — original illustration 1, reference 870Original colors & callouts · Select to enlarge

5. Position aside the safety belt guide, release the clips and remove the loadspace trim panel.
