Loadspace Trim Panel - Convertible — 2016 workshop reference 867

Loadspace Trim Panel - Convertible — original illustration 1, reference 867Original colors & callouts · Select to enlarge

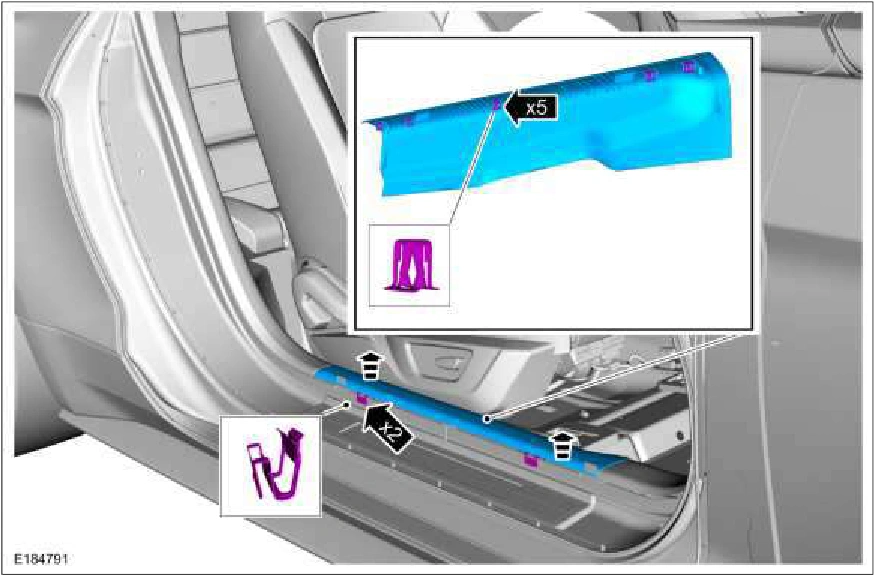

4. Release the clips and remove the scuff plate trim panel.

Loadspace Trim Panel - Convertible — original illustration 2, reference 867Original colors & callouts · Select to enlarge

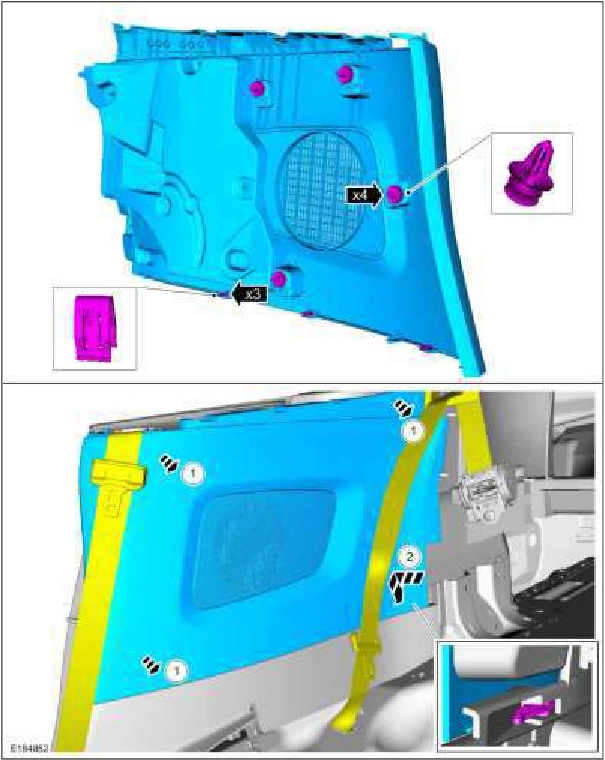

5. Release the clips and remove the lower loadspace trim panel.
